| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Length - Mating | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

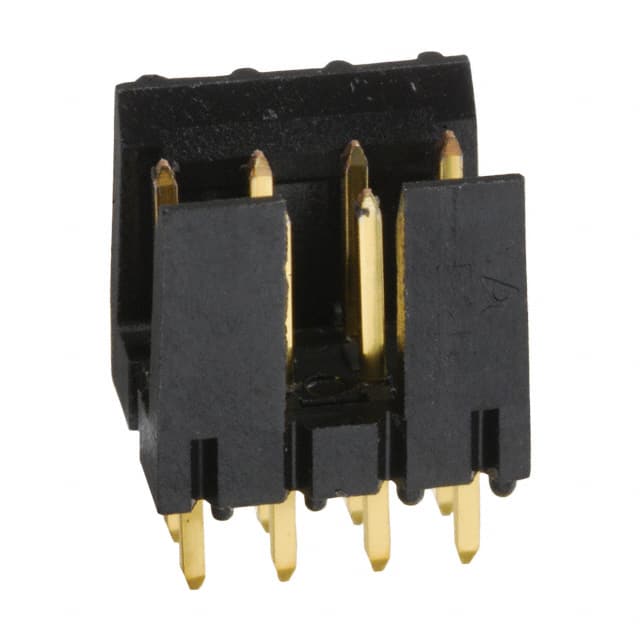

The 69168-108HLF is a rectangular connector header manufactured by Amphenol ICC. It is an 8-position, 2-row, 2.54mm pitch through hole mounted header with a shrouded design (2-wall) and friction lock fastening. The contact type is male pin, made of phosphor bronze with a gold or GXT plating thickness of 30.0µin (0.76µm). The mating contact length is 5.84mm and overall contact length is 10.16mm. The insulation height is 9.80mm, color black, and the material has a flammability rating of UL94 V-0. This connector is designed for board-to-cable/wire applications, providing a reliable locking mechanism. The termination is solder type, through hole mounting. The contact shape is square. This component is suitable for a variety of interconnection needs requiring a secure, polarized connection.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.93 | $1.93 |
| 10+ | $1.64 | $1.64 |
| 100+ | $1.39 | $1.39 |
| 500+ | $1.24 | $1.24 |
| 1,000+ | $1.18 | $1.18 |
| 5,000+ | $1.06 | $1.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This header has 8 positions arranged in 2 rows.
The pitch is 2.54mm (0.100 inches).
The mounting type is through hole with solder termination.
The contacts are plated with gold or Gold, GXT™ with a thickness of 30.0µin (0.76µm).
It uses a friction lock for secure mating.
The insulator material is rated UL94 V-0.
This connector is designed for board-to-cable/wire connections.
