| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination |

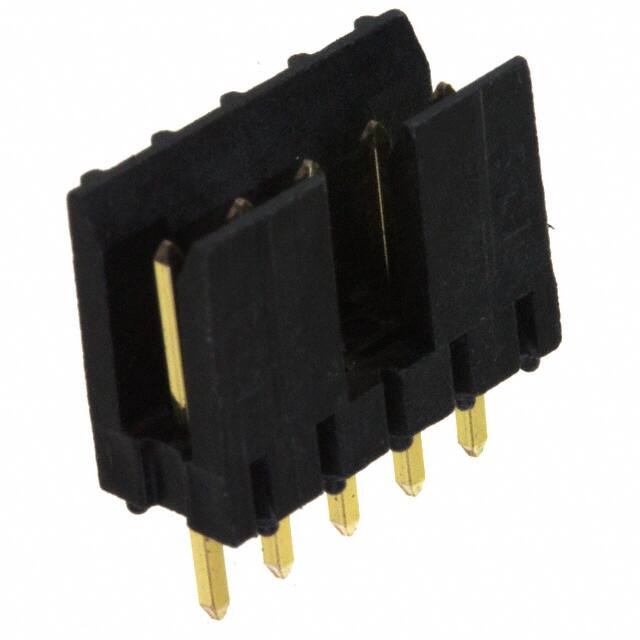

The 69167-105HLF is a 5-position, single row, 2.54mm pitch header manufactured by Amphenol ICC. It features male pin contacts with a square shape and is designed for board-to-cable/wire applications. The header is shrouded with a 2-wall design and includes a friction lock for secure mating.
The connector is through-hole mounted and terminated via solder. The insulation is made of black material with a UL94 V-0 flammability rating. The overall contact length is 11.81mm with a mating contact length of 5.84mm and an insulation height of 9.80mm.
The contacts are made of phosphor bronze with a gold or GXT finish of 0.76µm thickness. The part is RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited). This header is suitable for applications requiring a reliable, locked connection in a compact form factor.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.25 | $1.25 |
| 10+ | $1.06 | $1.06 |
| 100+ | $0.91 | $0.91 |
| 500+ | $0.81 | $0.81 |
| 2,000+ | $0.73 | $0.73 |
| 6,000+ | $0.68 | $0.68 |
| 10,000+ | $0.65 | $0.65 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5 positions, all loaded.
2.54mm (0.100")
Through Hole with solder termination.
Gold or Gold, GXT™ with 0.76µm thickness.
Yes, it has a shrouded 2-wall design with a friction lock.
9.80mm (0.386")
