| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

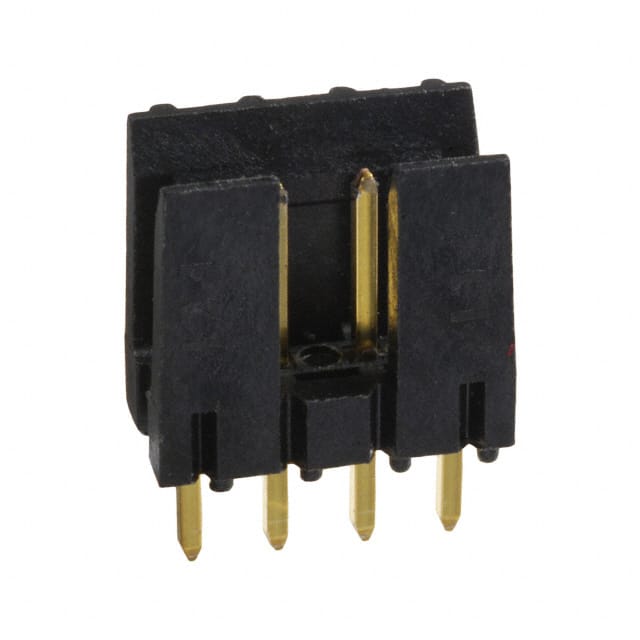

The 69167-104HLF is a rectangular connector header manufactured by Amphenol ICC. It features 4 positions arranged in a single row with a 2.54mm (0.100") pitch. The connector is a male pin header designed for board-to-cable/wire applications.
The header is shrouded with a 2-wall design and includes a friction lock fastening system for secure mating. Contacts are made of phosphor bronze with a gold or gold GXT™ finish of 30.0 microinches (0.76 µm) thickness. The contact shape is square.
This component uses through hole mounting with solder termination. The insulation height is 9.80mm (0.386") and the overall contact length is 11.81mm (0.465"). The insulator is black and is rated UL94 V-0 for flammability. All 4 positions are loaded.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
| 10+ | $1.02 | $1.02 |
| 100+ | $0.87 | $0.87 |
| 500+ | $0.77 | $0.77 |
| 2,000+ | $0.70 | $0.70 |
| 6,000+ | $0.65 | $0.65 |
| 10,000+ | $0.63 | $0.63 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions, all loaded.
