| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Current Rating (Amps) | |
| Gender | |
| Height | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions or Pins (Grid) | |
| Pitch | |
| Termination Style | |
| Type |

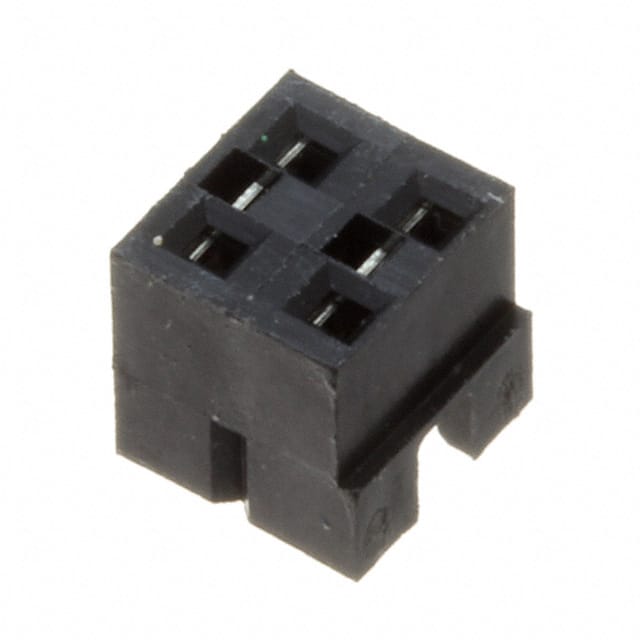

The 69145-204LF is a 4 position (2x2) shunt jumper from Amphenol ICC, featuring a 2.54mm (0.100") pitch. It is designed with female sockets and an open top configuration, suitable for bridging or selecting connections on a circuit board.
Electrical rating is 3A. The contacts are finished with gold or Gold, GXT™ with a thickness of 30.0µin (0.76µm) for reliable low-resistance connections. The housing is made of polyester with a UL94 V-0 flammability rating.
Mounting is through hole with solder termination. The device is black in color. Compliance claims include RoHS3, REACH unaffected, and MSL 1 unlimited, though these are unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.74 | $0.74 |
| 10+ | $0.63 | $0.63 |
| 25+ | $0.59 | $0.59 |
| 50+ | $0.56 | $0.56 |
| 100+ | $0.53 | $0.53 |
| 250+ | $0.50 | $0.50 |
| 500+ | $0.48 | $0.48 |
| 1,000+ | $0.45 | $0.45 |
| 2,500+ | $0.43 | $0.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions arranged in a 2x2 grid.
2.54mm (0.100").
3A.
Through hole with solder termination.
Gold or Gold, GXT™ with 30µin thickness.
UL94 V-0.
Polyester.
