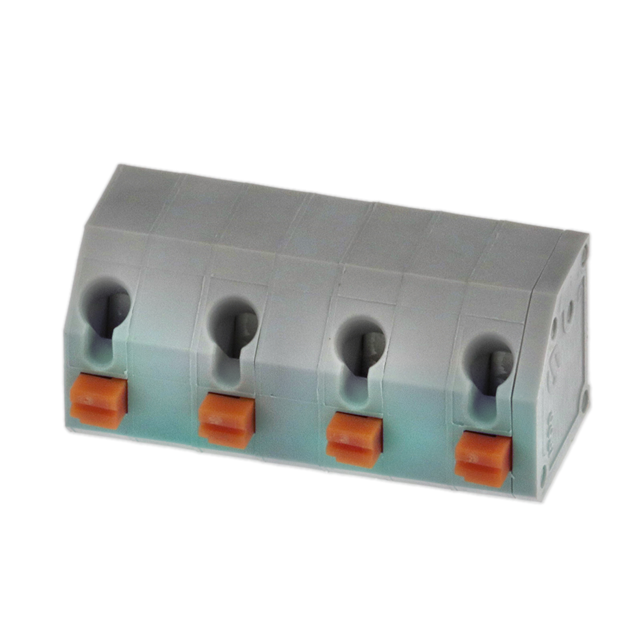

691418420004 This is a 4-position spring clamp terminal block from Würth Elektronik's WR-TBL series. It features a 7.62mm pitch, 45° wire entry, and is rated for 4A (UL) and 300V (UL).
Mfr Part #:

691418420004

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
This is a 4-position spring clamp terminal block from Würth Elektronik's WR-TBL series. It features a 7.62mm pitch, 45° wire entry, and is rated for 4A (UL) and 300V (UL).
✓ Total Stock: 20 pcs
$ Price Range: $1.43 - $2.27

691418420004 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691418420004 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Material
Contact Plating
Contact Resistance
Current
Insulator Material
Lead Spacing
Mating Orientation
Mounting Type
Number of Levels
Operating Temperature
Pitch
Positions Per Level
Voltage
Wire Gauge
Wire Termination
View Similar Products (0)

691418420004 Description

Short technical summary and product information.

The Würth Elektronik 691418420004 is a 4-position screwless spring clamp terminal block from the WR-TBL series. It features a 7.62mm pitch and a 45° angled wire entry, allowing for space-saving PCB layouts. The through-hole mounting with kinked pins ensures secure attachment to the board.



Electrical ratings include a maximum current of 4A (UL and VDE), a working voltage of 300V AC (UL) and 750V AC (VDE), and dielectric strength of 1.6kV (UL) and 2.5kV (VDE). Contact resistance is 20mΩ maximum. The terminal block accepts solid and stranded wires from 30 to 16 AWG with a strip length of 7mm.



Mechanically, the insulator is made of PA6/66 with a UL94 V-0 flammability rating, colored gray. Contacts are phosphor bronze with matte tin plating, and the wire guard is also phosphor bronze. The operating temperature range is -30°C to +120°C. Packaging is in a box.



This component is RoHS and lead-free compliant. It is suitable for general electronics applications requiring reliable wire-to-board connections in industrial, commercial, and consumer equipment.

691418420004 Quick Information

Product Type: Screwless Spring Clamp Terminal Block
Series: 4184
Canonical Name: WR-TBL Series 4184 7.62 mm 45° Entry Screwless Terminal Block, 4 Positions
Subcategory: Wire to Board

691418420004 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: Lead Free

691418420004 Estimated Pricing

Qty Low High
1+ $2.27 $2.27
10+ $2.06 $2.06
50+ $1.93 $1.93
100+ $1.77 $1.77
400+ $1.43 $1.43

Estimated market price range - modelled values for guidance only, not live distributor offers.

691418420004 Features

  • Four positions with 7.62mm pitch.
  • 45° angled wire entry for compact designs.
  • Screwless spring clamp termination.
  • Rated 4A at 300V (UL) and 750V (VDE).
  • Operates from -30°C to +120°C.

691418420004 Applications

  • Ideal for PCB wire-to-board connections in general electronics.
  • Used in power supplies, control, and automation systems.
  • Space-saving 45° wire entry for compact designs.
  • For applications requiring up to 4A and 300V.

691418420004 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this terminal block have?

4 positions.

What is the pitch of this terminal block?

7.62 mm.

What is the current rating of this terminal block?

4 A (UL and VDE).

What is the voltage rating of this terminal block?

300 V (UL) and 750 V (VDE).

What is the mounting type of this terminal block?

Through Hole, Kinked Pin.

What wire gauge does this terminal block accept?

30-16 AWG solid and stranded.

What is the operating temperature range?

-30°C to +120°C.
