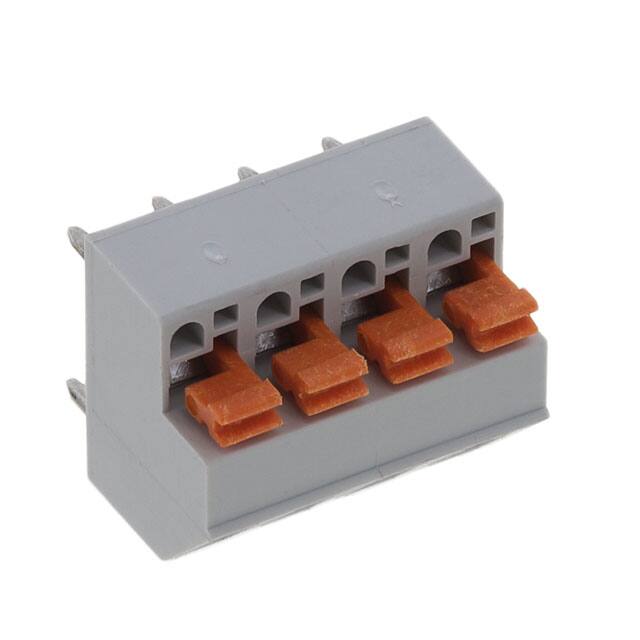

691415520004 This 691415520004 is a 4-position, single-level screwless wire-to-board terminal block from Würth Elektronik's WR-TBL Series 4155, featuring a 5.08mm pitch and 45° cable entry.
Mfr Part #:

691415520004

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
This 691415520004 is a 4-position, single-level screwless wire-to-board terminal block from Würth Elektronik's WR-TBL Series 4155, featuring a 5.08mm pitch and 45° cable entry.
✓ Total Stock: 5 pcs
$ Price Range: $1.53 - $2.35

691415520004 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691415520004 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Material
Contact Resistance
Current
Insulator Flammability Rating
Insulator Material
Lead Spacing
Mating Orientation
Mounting Type
Number of Levels
Operating Temperature
Pitch
Positions Per Level
Tape & Reel
Voltage
Wire Gauge
Wire Termination
View Similar Products (0)

691415520004 Description

Short technical summary and product information.

The Würth Elektronik 691415520004 is a 4-position, single-level screwless wire-to-board terminal block from the WR-TBL Series 4155. It features a 5.08 mm pitch and a 45° cable entry orientation, enabling space-saving PCB layouts. The through-hole mounting and screwless spring clamp termination allow for quick and reliable wire connection without tools.



Electrical ratings are 15 A at 300 V AC (cULus) and 13.5 A at 250 V AC (VDE), with a contact resistance of 20 mΩ. The terminal block accepts solid and stranded wires from 24 to 14 AWG (0.25 to 1.5 mm²) with a strip length of 10 mm. Operating temperature range is -30°C to +115°C.



Constructed with a PA66 insulator (UL94 V-0, gray), INOX steel contacts, copper alloy wire guard and pins, and stainless steel spring. Pin plating is tin over nickel. The component is RoHS compliant and REACH unaffected.



Packaged in a box, this terminal block is suitable for industrial control, building automation, lighting, and general electronics applications. Certified cULus (E150931) and VDE (40060619).

691415520004 Quick Information

Product Type: Wire to Board Terminal Block
Series: 4155
Canonical Name: WR-TBL Series 4155, 5.08 mm, 4 Position, Screwless, Through Hole, Wire to Board Terminal Block
Subcategory: Wire to Board

691415520004 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

691415520004 Estimated Pricing

Qty Low High
1+ $2.35 $2.35
10+ $2.15 $2.15
50+ $2.02 $2.02
100+ $1.86 $1.86
400+ $1.53 $1.53

Estimated market price range - modelled values for guidance only, not live distributor offers.

691415520004 Features

  • 4 positions with 5.08 mm pitch.
  • Screwless spring clamp for quick wiring.
  • Rated 15 A (cULus) and 13.5 A (VDE).
  • 45° cable entry for space-saving layouts.
  • Through-hole mounting for reliable PCB attachment.

691415520004 Applications

  • Ideal for industrial control and automation.
  • Used in building automation and lighting.
  • Suitable for power supply connections.
  • Applies to general electronics and instrumentation.

691415520004 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this terminal block have?

This terminal block has 4 positions.

What is the pitch?

The pitch is 5.08 mm.

What are the current and voltage ratings?

cULus: 15 A, 300 V AC. VDE: 13.5 A, 250 V AC.

What type of mounting is used?

Through-hole mounting.

What wire gauge is supported?

Solid and stranded wires from 24 to 14 AWG (0.25 to 1.5 mm²).

What is the operating temperature range?

-30°C to +115°C.

What materials are used in construction?

Insulator: PA66 (UL94 V-0), contacts: INOX steel, wire guard: copper alloy, spring: stainless steel, pins: copper alloy with tin over nickel plating.
