691412420012M This Würth Elektronik 691412420012M terminal block has 12 positions at 7.62mm pitch, offers screwless termination, and is rated for 4A at 300V (UL).
Mfr Part #:

691412420012M

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
This Würth Elektronik 691412420012M terminal block has 12 positions at 7.62mm pitch, offers screwless termination, and is rated for 4A at 300V (UL).
✓ Total Stock: 43 pcs
$ Price Range: $6.22 - $7.11

691412420012M Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
43 pcs
On Request
43 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691412420012M Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Material
Contact Plating
Contact Resistance
Current
Insulator Material
Lead Spacing
Lead Style
Mating Orientation
Medical Grade
Military Grade
Mounting Type
Number of Levels
Operating Temperature
Pitch
Positions Per Level
Tape & Reel
Termination Style
Voltage
Wire Gauge
Wire Termination
View Similar Products (0)

691412420012M Description

Short technical summary and product information.

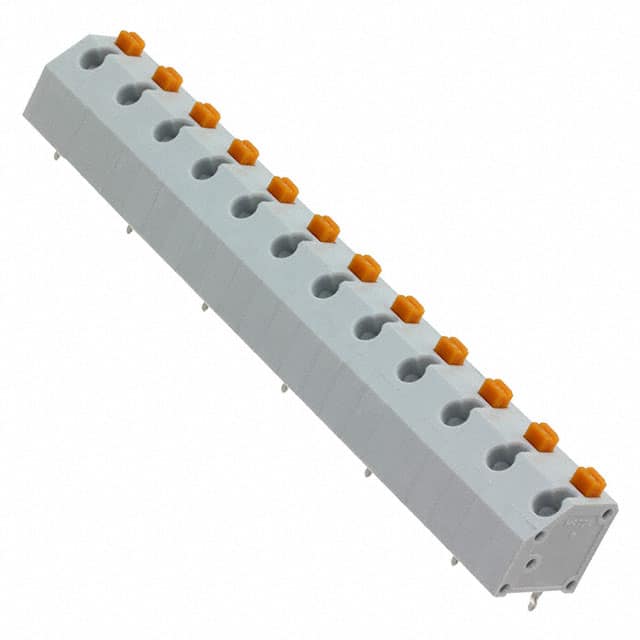

The Würth Elektronik 691412420012M is a 12-position terminal block from the WR-TBL 4124 series. It features a 7.62mm pitch with a 45° (135°) wire entry angle relative to the board. The screwless clamp termination style allows for quick and reliable wire connections without tools. It accepts 16 to 30 AWG wire.



Rated for 4A current and 300V (UL)/750V (VDE) voltage, with a withstanding voltage of 1600V (UL)/2500V (VDE) and contact resistance of 20mΩ. The insulator is made of PA6/66 with a UL94 V-0 flammability rating. Contacts are phosphor bronze with tin plating. Operating temperature range is -30°C to +120°C.



The through-hole mounting style uses kinked pins for secure PCB retention. The overall length of the part is 89.13mm with pin-to-pin spacing of 83.82mm.

691412420012M Quick Information

Product Type: Terminal Block
Series: 4124
Canonical Name: 691412420012M | Würth Elektronik - Term Blk 12Pos 45Deg 7.62mm PCB
Subcategory: 45° Entry

691412420012M Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

691412420012M Estimated Pricing

Qty Low High
1+ $7.11 $7.11
10+ $6.22 $6.22

Estimated market price range - modelled values for guidance only, not live distributor offers.

691412420012M Features

  • 12 positions at 7.62mm pitch.
  • Screwless clamp wire termination.
  • Rated for 4A and 300V (UL).
  • Through-hole kinked pin mounting.
  • 45° angle wire entry.

691412420012M Applications

  • Used in industrial control and automation.
  • Suitable for power supply connections.
  • Ideal for building and home automation.

691412420012M FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does this terminal block have?

This terminal block has 12 positions.

What is the pitch of this terminal block?

The pitch is 7.62 mm.

What is the current rating of this terminal block?

The current rating is 4 A (UL and VDE).

What voltage rating does this terminal block support?

The voltage rating is 300 V (UL) and 750 V (VDE).

What type of mounting does this terminal block use?

It uses Through Hole mounting with kinked pins.
