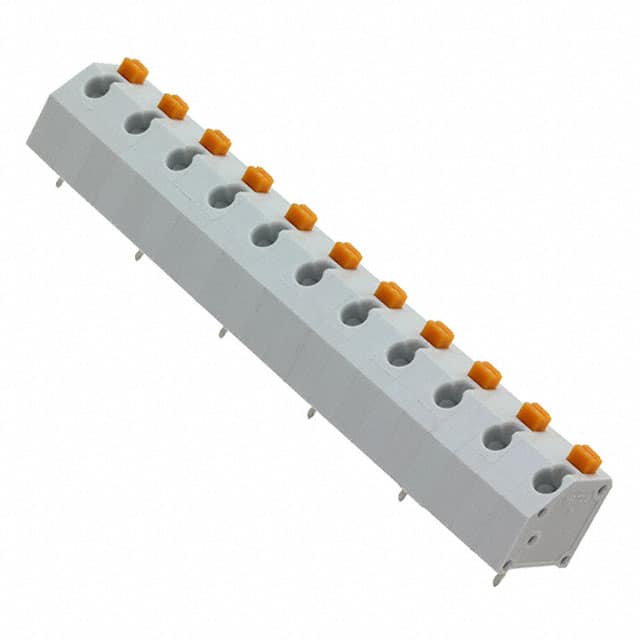

691412420011 11 position, single level, 7.62mm pitch screwless terminal block from Würth Elektronik WR-TBL Series 4124 with 45° wire entry.
Mfr Part #:

691412420011

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
11 position, single level, 7.62mm pitch screwless terminal block from Würth Elektronik WR-TBL Series 4124 with 45° wire entry.
✓ Total Stock: 20 pcs

691412420011 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691412420011 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Material
Contact Plating
Contact Resistance
Current
Insulator Material
Lead Spacing
Length
Mating Orientation
Mounting Type
Number of Levels
Operating Temperature
Pitch
Positions Per Level
Rated Current
Tape & Reel
Termination Style
Voltage
Wire Gauge
Wire Termination
View Similar Products (0)

691412420011 Description

Short technical summary and product information.

The Würth Elektronik 691412420011 is a 11-position, single-level screwless terminal block from the WR-TBL Series 4124. It features a 7.62mm pitch and a 45° (135°) wire entry angle relative to the PCB, making it suitable for space-constrained designs. The through-hole, kinked pin mounting ensures secure PCB attachment.



Rated for 4A current (UL and VDE) and 300V AC (UL) or 750V AC (VDE), this terminal block accepts 16-30 AWG solid or stranded wire with a 7mm strip length. The insulator is gray PA6/66 with a UL94 V-0 flammability rating, and contacts are copper alloy with tin plating.



Designed for general electronic equipment, the 691412420011 is cULus (E150931) and VDE (40013441) certified. It is RoHS3 compliant and lead-free. The overall length is 81.51mm with a pin-to-pin spacing of 76.2mm.

691412420011 Quick Information

Product Type: Terminal Block
Series: 4124
Canonical Name: WR-TBL Series 4124 7.62mm Screwless 45° Entry Terminal Block, 11 Positions
Subcategory: Screwless Spring Clamp

691412420011 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead free

691412420011 Features

  • 11 positions with 7.62mm pitch.
  • Screwless spring clamp termination.
  • 45° wire entry angle to PCB.
  • Rated 4A current, 300V AC (UL).
  • cULus and VDE certified.

691412420011 Applications

  • Ideal for wire-to-board connections in control systems.
  • Suitable for industrial automation and instrumentation.
  • Used in power distribution and signal wiring.
  • Applicable in lighting and building automation.

691412420011 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this terminal block have?

11 positions in a single level.

What is the pitch of this terminal block?

7.62mm (0.300 inches).

What is the current rating?

4A (UL and VDE).

What is the voltage rating?

300V AC (UL) and 750V AC (VDE).

What is the mounting type?

Through hole with kinked pin.

What wire gauge does it accept?

16 to 30 AWG solid or stranded wire.

What is the operating temperature range?

-30°C to +120°C.
