| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Material | |
| Contact Plating | |
| Contact Resistance | |
| Current | |
| Insulator Flammability Rating | |
| Insulator Material | |
| Lead Spacing | |
| Length | |
| Mating Orientation | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Levels | |
| Operating Temperature | |
| Pitch | |
| Positions Per Level | |
| Voltage | |
| Wire Gauge | |
| Wire Termination |

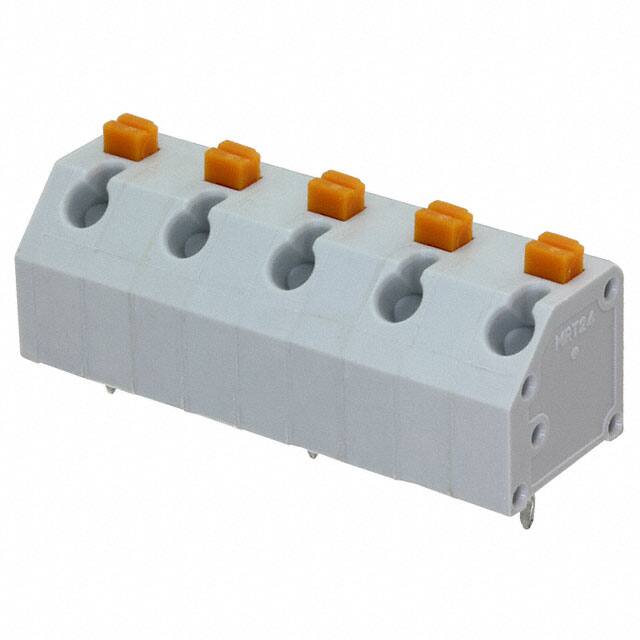

The Würth Elektronik 691412420005 is a 5-position, single-level wire-to-board terminal block from the WR-TBL Series 4124. It features a 7.62mm pitch and a 45° (135°) angled wire entry for space-constrained PCB layouts. The screwless spring clamp termination accepts solid or stranded wire from 16 to 30 AWG (1.31 to 0.05 mm²) with a 7mm strip length.
Rated for 4A current and 300V AC (cULus) or 750V AC (VDE), the terminal block uses a PA6/66 insulator rated UL94 V-0 and tin-plated copper alloy contacts. The through-hole mounting with kinked pins ensures secure PCB retention. Operating temperature range is -30°C to +120°C.
This component is RoHS3 compliant and lead-free. It is suitable for industrial control, power supplies, and building automation where reliable screwless wire termination is required.
| Qty | Low | High |
|---|---|---|
| 100+ | $1.81 | $1.81 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5 positions in a single level.
7.62 mm.
4 A (cULus and VDE).
300 V AC (cULus) and 750 V AC (VDE).
Through hole with kinked pin.
Solid and stranded wire from 16 to 30 AWG (1.31 to 0.05 mm²).
-30°C to +120°C.
