| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Color | |
| Contact Material | |
| Contact Plating | |
| Contact Resistance | |
| Current | |
| Halogen Free | |
| Industrial Grade | |
| Insulator Flammability Rating | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mating Orientation | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Positions Per Level | |
| SVHC Present | |
| Voltage | |
| Wire Gauge | |
| Wire Termination |

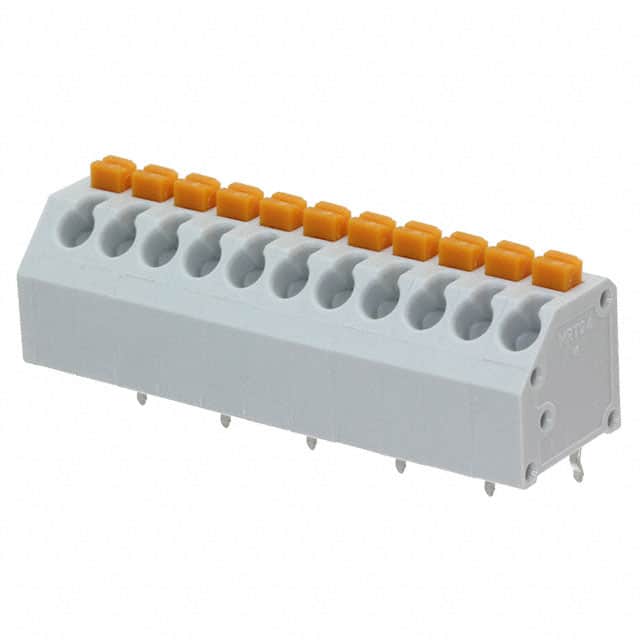

The Würth Elektronik 691412320011M is an 11-position screwless terminal block from the WR-TBL 4123M series. It features a 3.81mm pitch and a 45° wire entry angle, allowing for compact PCB layouts. The screwless spring clamp mechanism enables tool-less wire termination, accepting 16-30 AWG solid or stranded wire with a 7mm strip length.
Electrical ratings include 4A current carrying capacity (cULus and VDE) and working voltages of 300V AC (cULus) and 450V AC (VDE). Withstanding voltage is 1600V AC (cULus) and 2500V AC (VDE), with contact resistance of 20mΩ. The insulator is made of PA6/66 with UL94 V-0 flammability rating, and contacts are phosphor bronze with tin plating and a tin-plated phosphor bronze wire guard.
Mechanical specifications include through-hole mounting with kinked pins, gray color, and an operating temperature range of -30°C to +120°C. Packaging is in boxes. This terminal block is RoHS compliant and lead-free. It is suitable for wire-to-board PCB applications requiring reliable, space-saving connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.89 | $3.89 |
| 10+ | $3.40 | $3.40 |
| 50+ | $3.08 | $3.08 |
| 100+ | $2.75 | $2.75 |
| 500+ | $2.65 | $2.65 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
11 positions.
3.81mm (0.150 inches).
4A (cULus and VDE).
300V AC (cULus) and 450V AC (VDE).
Through hole with kinked pins.
16-30 AWG for both solid and stranded wire.
-30°C to +120°C.
