| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
42 pcs
|
42 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Material | |
| Contact Plating | |
| Contact Resistance | |
| Current | |
| Current Rating | |
| Flammability Rating | |
| Insulator Color | |
| Insulator Material | |
| Lead Spacing | |
| Length | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Operating Temperature | |
| Pin to Pin (Middle) | |
| Pitch | |
| Positions Per Level | |
| Voltage | |
| Wire Gauge | |
| Wire Guard Material | |
| Wire Strip Length | |
| Wire Termination | |
| Withstanding Voltage (Minimum) | |
| Working Voltage |

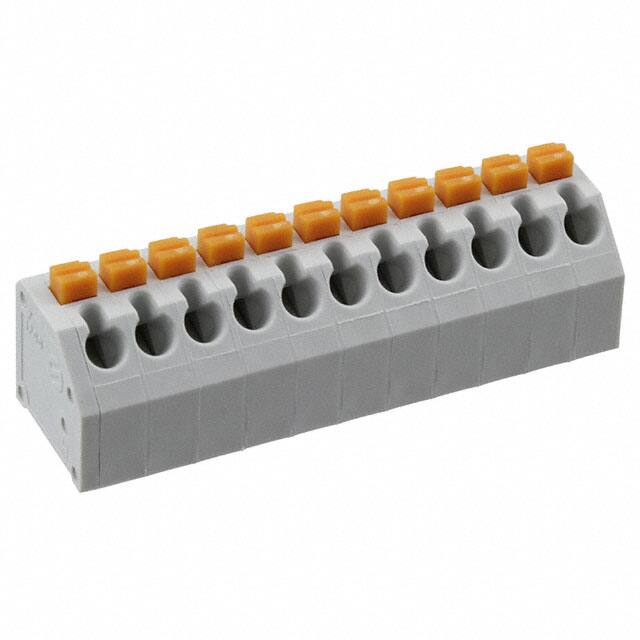

The Würth Elektronik 691412320011 is a WR-TBL series 4123 screwless terminal block designed for wire-to-board PCB connections. It features 11 positions on a single level with a 3.81mm pitch, providing a compact and reliable interconnection solution.
This terminal block uses a screwless spring clamp termination for solid or stranded wires from 16 to 30 AWG, with a strip length of 7 mm. It is rated for 4 A current and offers dual agency voltage ratings: 300 V AC (cULus) and 450 V AC (VDE). The insulator is molded from gray PA6/66 with a UL94 V-0 flammability rating, ensuring robust performance.
The 45° (135°) mating orientation allows angled wire entry convenient for tight layouts. The contact system uses phosphor bronze contacts with tin plating and a tin‑plated phosphor bronze wire guard. The through‑hole mounting with kinked pins provides secure mechanical retention.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.84 | $3.84 |
| 10+ | $3.36 | $3.36 |
| 50+ | $3.04 | $3.04 |
| 100+ | $2.72 | $2.72 |
| 500+ | $2.61 | $2.61 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 11 positions on a single level.
The pitch is 3.81 mm.
The current rating is 4 A. Voltage rating is 300 V AC (cULus) and 450 V AC (VDE).
It uses screwless spring clamp termination.
The operating temperature range is -30 °C to +120 °C.
