| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Color | |
| Contact Material | |
| Contact Plating | |
| Contact Resistance | |
| Current | |
| Industrial Grade | |
| Insulator Flammability Rating | |
| Insulator Material | |
| Lead Spacing | |
| Mating Orientation | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Levels | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Positions Per Level | |
| SVHC Present | |
| Solid Wire Section | |
| Stranded Wire Section | |
| Voltage | |
| Wire Gauge | |
| Wire Guard Material | |
| Wire Strip Length | |
| Wire Termination | |
| Withstanding Voltage (Minimum @ VDE) | |
| Withstanding Voltage (Minimum @ cULus) | |
| Working Voltage (Nominal @ VDE) | |
| Working Voltage (Nominal @ cULus) |

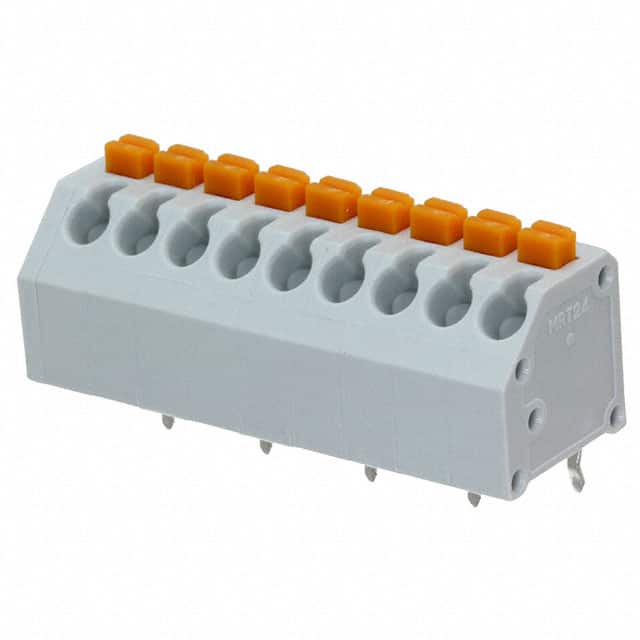

The Würth Elektronik 691412320009M is a wire-to-board terminal block from the WR-TBL 4123M series, designed for space-constrained PCB applications. It offers 9 positions with a 3.81mm pitch and a 45° angled wire entry for efficient routing. The screwless spring clamp mechanism enables quick, tool-free wire termination supporting 16 to 30 AWG solid or stranded wire with a strip length of 7mm.
Electrically, the terminal block is rated for 4A current (cULus and VDE) with working voltages of 300V AC (cULus) and 450V AC (VDE). Withstanding voltage is 1600V AC (cULus) and 2500V AC (VDE), with a maximum contact resistance of 20mΩ. The insulator is made of gray PA6/66 with UL94 V-0 flammability rating, and the contacts are phosphor bronze with tin plating, including tin-plated phosphor bronze wire guards.
Mechanically, it features through-hole mounting with kinked pins, operating over a temperature range of -30°C to +120°C. The part is packaged in a box and is cULus (E150931) and VDE (40013441) certified. It is suitable for general electronic equipment requiring reliable, compact wire-to-board connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.26 | $3.26 |
| 10+ | $2.85 | $2.85 |
| 50+ | $2.58 | $2.58 |
| 100+ | $2.31 | $2.31 |
| 500+ | $2.22 | $2.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The terminal block has 9 positions.
The pitch is 3.81mm (0.150").
The rated current is 4A for both cULus and VDE.
The working voltage is 300V AC (cULus) and 450V AC (VDE).
It is through-hole mounting with kinked pins.
The operating temperature range is -30°C to +120°C.
It supports 16 to 30 AWG solid or stranded wire.
