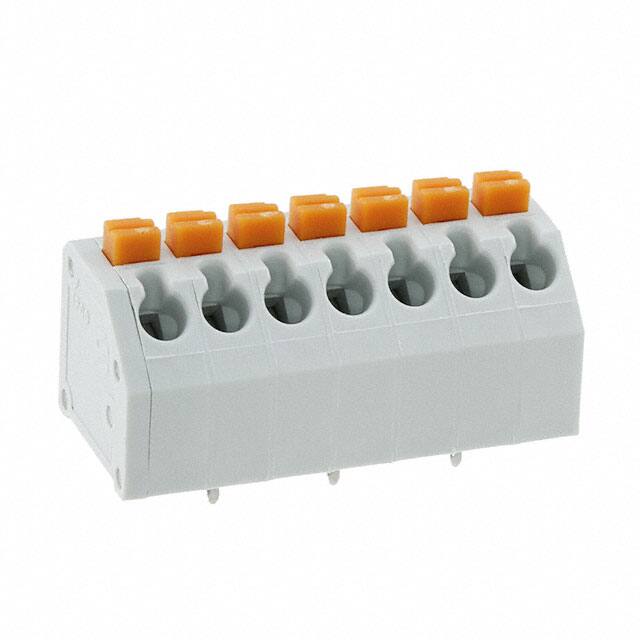

691412320007M 7-position screwless wire-to-board terminal block from Würth Elektronik with 3.81mm pitch and 45° mating orientation.
Mfr Part #:

691412320007M

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
7-position screwless wire-to-board terminal block from Würth Elektronik with 3.81mm pitch and 45° mating orientation.
✓ Total Stock: 100 pcs
$ Price Range: $1.81 - $2.65

691412320007M Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
100 pcs
On Request
100 pcs On Request 10 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691412320007M Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Material
Contact Plating
Contact Resistance
Current
Industrial Grade
Insulator Flammability Rating
Insulator Material
Lead Spacing
Lead Style
Length
Mating Orientation
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Positions Per Level
SVHC Present
Voltage
Wire Gauge
Wire Termination
View Similar Products (0)

691412320007M Description

Short technical summary and product information.

The Würth Elektronik 691412320007M is a 7-position screwless wire-to-board terminal block from the WR-TBL Series 4123M. It features a 3.81mm pitch and a 45° (135°) entry angle relative to the PCB. The spring clamp termination accepts solid or stranded wire from 16 to 30 AWG with a strip length of 7 mm.



Rated for 4 A current under both UL and VDE standards, the terminal block supports working voltages up to 300 V AC (UL) and 450 V AC (VDE). Withstanding voltage is 1600 V AC (UL) and 2500 V AC (VDE), with a contact resistance of 20 mΩ. The operating temperature range is -30 °C to +120 °C.



Constructed with a gray PA6/66 insulator (UL94 V-0 flammability rated) and phosphor bronze contacts with tin plating, this component is suitable for industrial control, lighting, and power distribution applications. It is packaged in a box and has an active production status with an expected lifetime greater than 10 years.

691412320007M Quick Information

Product Type: Screwless Wire-to-Board Terminal Block
Series: 4123M
Canonical Name: Würth Elektronik 691412320007M - 3.81mm Pitch, 7-Position Screwless Wire-to-Board Terminal Block
Subcategory: Screwless Wire-to-Board Terminal Block

691412320007M Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

691412320007M Estimated Pricing

Qty Low High
1+ $2.65 $2.65
10+ $2.32 $2.32
50+ $2.10 $2.10
100+ $1.87 $1.87
500+ $1.81 $1.81

Estimated market price range - modelled values for guidance only, not live distributor offers.

691412320007M Features

  • 7 positions with 3.81mm pitch.
  • Screwless spring clamp termination.
  • Rated for 4A current (UL and VDE).
  • Operating temperature range -30°C to +120°C.
  • UL94 V-0 flammability rated insulator.

691412320007M Applications

  • Used for wire-to-board connections in industrial control systems.
  • Suitable for lighting and power distribution applications.
  • Ideal for compact PCB designs requiring 45° wire entry.

691412320007M FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 691412320007M have?

It has 7 positions.

What is the pitch of this terminal block?

The pitch is 3.81 mm.

What is the current rating?

The current rating is 4 A under both UL and VDE standards.

What is the voltage rating?

The working voltage is 300 V AC (UL) and 450 V AC (VDE).

What is the mounting type?

Through hole with kinked pin mounting.

What wire gauge does it accept?

It accepts 16 to 30 AWG solid or stranded wire.

What is the operating temperature range?

Operating temperature is -30 °C to +120 °C.
