| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Color | |
| Current | |
| Current Rating | |
| Features | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Mating Orientation | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Levels | |
| Packaging Method | |
| Pitch | |
| Positions Per Level | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Termination |

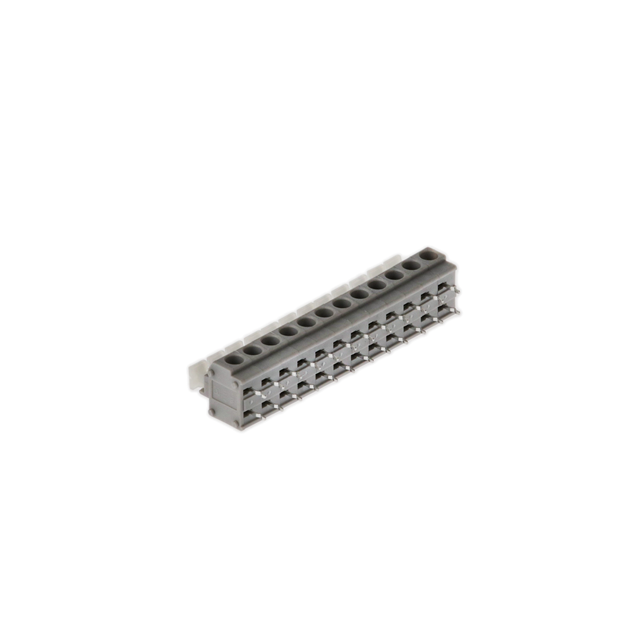

The Würth Elektronik 691411710012B is a 12-position spring clamp terminal block from the WR-TBL Series 411B, featuring a 5.00mm pitch and horizontal wire entry. It is designed for through-hole mounting on PCBs, providing a reliable wire-to-board connection without the need for screws.
Electrically, the terminal block is rated for 10A continuous current and 300V AC working voltage, with a withstand voltage of 2.0 kV AC and maximum contact resistance of 20 mOhm. The screwless push-button clamp mechanism accepts solid or stranded wire from 14 to 20 AWG (0.5 to 2.1 mm²) and requires a strip length of 9-10 mm.
Constructed with a PA66 insulator (UL94 V-0 flammability rating) and brass contacts with tin plating, the block also features a stainless steel wire guard. Side interlocking allows multiple blocks to be joined for more positions. The operating temperature range is -40 to 115°C per datasheet. Packaging is in boxes.
| Qty | Low | High |
|---|---|---|
| 63+ | $5.60 | $5.60 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 12 positions per level with 1 level.
5.00 mm.
10 A.
300 V AC (working voltage).
Through hole.
-40 to 115 °C per datasheet (manufacturer page specifies -40 to 105 °C).
Solid or stranded wire from 14 to 20 AWG (0.5 to 2.1 mm²).
