| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Material | |
| Contact Resistance | |
| Current | |
| Industrial Grade | |
| Insulator Flammability Rating | |
| Insulator Material | |
| Lead Spacing | |
| Length | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Positions Per Level | |
| SVHC Present | |
| Termination Style | |
| Voltage | |
| Wire Gauge | |
| Wire Termination |

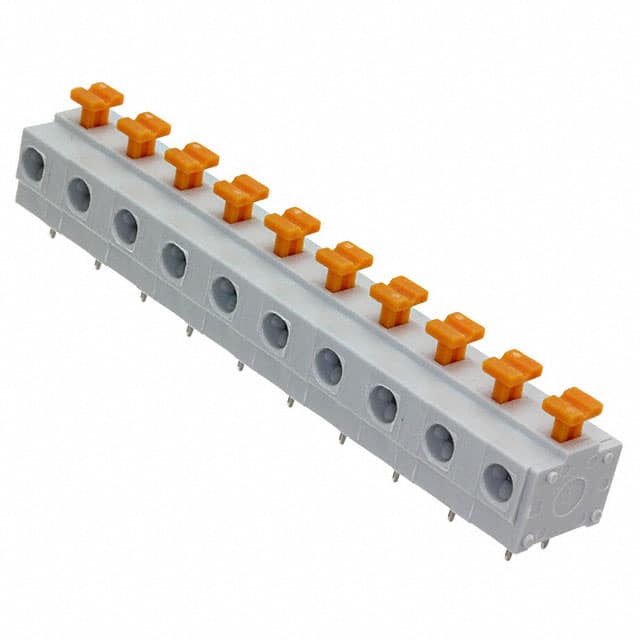

The Würth Elektronik 691411410010 is a 10 position screwless terminal block from the WR-TBL series 4114. It features a push button clamp for quick wire insertion and is designed for through hole mounting with horizontal wire entry. The pitch is 7.62mm and the insulator is made of PA6/66 with UL94 V-0 flammability rating, colored grey.
Electrically, the terminal block is rated 10A for both UL and VDE standards. Working voltage is 300V AC (UL) and 750V AC (VDE). Withstanding voltage is 1600V AC (UL) and 3000V AC (VDE) for 1 minute. Contact resistance is 20mΩ maximum.
Mechanically, it accepts solid and stranded wire from 16 to 30 AWG (0.5 to 1.5 mm²) with a strip length of 10mm. The pin material is copper alloy with tin over nickel plating, spring material is stainless steel, and wire guard material is copper alloy with tin over nickel. Operating temperature range is -30°C to +120°C. Dimensions: length 75.2mm, pin-to-pin spacing 69.58mm.
Compliance includes RoHS, cULus (file E150931), and VDE (file 40021396). The product is packaged in a box. Note: color data from existing DB (green) conflicts with datasheet (grey).
| Qty | Low | High |
|---|---|---|
| 1+ | $4.30 | $4.30 |
| 10+ | $3.77 | $3.77 |
| 50+ | $3.40 | $3.40 |
| 100+ | $3.05 | $3.05 |
| 500+ | $2.93 | $2.93 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions.
7.62mm (0.300 inches).
10A for both UL and VDE.
UL: 300V AC, VDE: 750V AC working voltage.
Through hole.
Screwless push button clamp.
16-30 AWG solid and stranded wire.
