| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
640 pcs
|
640 pcs | On Request | 10 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Color | |
| Contact Resistance | |
| Current | |
| Current Rating | |
| Halogen Free | |
| Industrial Grade | |
| Insulator Flammability Rating | |
| Insulator Material | |
| Lead Spacing | |
| Mating Orientation | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Levels | |
| Operating Temperature | |
| Pitch | |
| Positions Per Level | |
| SVHC Present | |
| Termination Style | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Termination | |
| Withstanding Voltage |

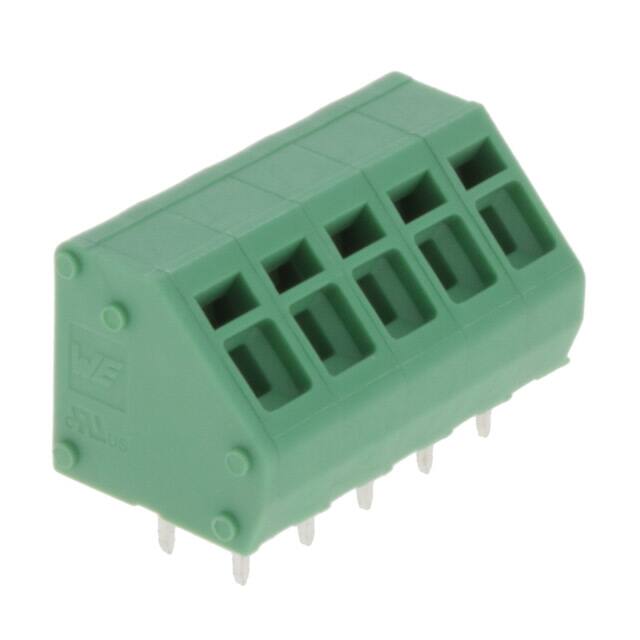

The Würth Elektronik 691408520005B is a WR-TBL Series 4085B screwless push-in terminal block. It features a 5.08mm pitch, 5 positions, and a through hole mounting with a 45° (135°) mating orientation. The insulator is made of green PA66 with UL94 V-0 flammability rating. Contacts are brass with tin over nickel plating, and the spring is stainless steel. Electrical ratings include 15A current and 300V voltage, with a withstanding voltage of 1600V and contact resistance of 20mΩ max. Wire range is 12-28 AWG with a strip length of 9-10mm. Operating temperature range is -40°C to +105°C. This terminal block is designed for wire-to-board applications and is RoHS and REACH compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.21 | $4.21 |
| 10+ | $4.10 | $4.10 |
| 100+ | $4.04 | $4.04 |
| 250+ | $3.98 | $3.98 |
| 500+ | $3.91 | $3.91 |
| 1,000+ | $3.79 | $3.79 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5 positions.
5.08 mm.
15 A.
300 V.
Through hole.
12-28 AWG.
