| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Color | |
| Contact Resistance | |
| Current | |
| Current Rating | |
| Flammability Rating | |
| Halogen Free | |
| Industrial Grade | |
| Insulator Material | |
| Lead Spacing | |
| Mating Orientation | |
| Medical Grade | |
| Metal Housing Material | |
| Military Grade | |
| Mounting Type | |
| Number of Levels | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Positions Per Level | |
| SVHC Present | |
| Solder Tail Plating | |
| Soldering Process | |
| Solid Wire Range | |
| Stranded Wire Range | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Guard Material | |
| Wire Strip Length | |
| Wire Termination | |
| Withstanding Voltage |

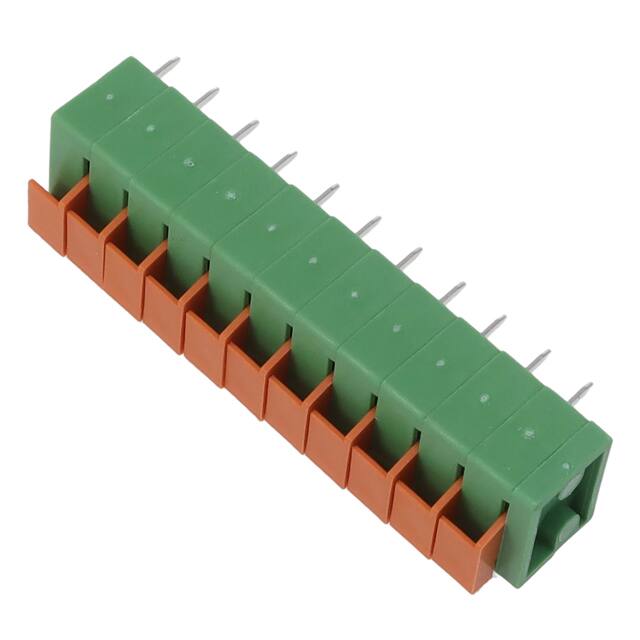

The 691401710011B is a 5.00mm pitch, 11-position, single level screwless push button clamp terminal block from Würth Elektronik's WR-TBL series. It features a horizontal entry orientation and through hole mounting for secure PCB attachment. The green insulator is made of PA66 with a UL94-V0 flammability rating, ensuring reliable performance in various environments.
Electrical ratings include 10A current (cULus) and 300VAC voltage (cULus), with a maximum contact resistance of 20mOhm and withstanding voltage of 2.0kV. The terminal block accepts solid and stranded wires from 24-14 AWG (0.205-2.08 mm²) with a strip length of 9-10mm. The screwless push button clamp mechanism allows for quick and tool-free wire termination.
The component is designed for wave soldering only (JEDEC lead free wave process) and is packaged in a box. Operating temperature ranges from -40°C to 105°C. Compliance includes RoHS and lead free status.
Typical applications include general electronic equipment, industrial control, power supplies, and building automation where reliable wire-to-board connections are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.79 | $5.79 |
| 10+ | $5.36 | $5.36 |
| 50+ | $5.10 | $5.10 |
| 100+ | $4.76 | $4.76 |
| 420+ | $4.08 | $4.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
11 positions.
5.00mm.
10A (cULus) and 16A (VDE).
300VAC (cULus) and 450VAC (VDE).
Through hole.
Screwless push button clamp.
24-14 AWG solid and stranded.
