| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Resistance | |
| Current | |
| Current Rating (Nominal @ VDE) | |
| Current Rating (Nominal @ cULus) | |
| Flammability Rating | |
| Housing Material | |
| Industrial Grade | |
| Insulator Material | |
| Lead Spacing | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Packaging Type | |
| Pin Material | |
| Pin Plating | |
| Pitch | |
| Positions Per Level | |
| SVHC Present | |
| Solder Process | |
| Spring Material | |
| Status | |
| Voltage | |
| Voltage Rating (Nominal @ VDE) | |
| Voltage Rating (Nominal @ cULus) | |
| Wire Gauge | |
| Wire Gauge - Solid | |
| Wire Gauge - Stranded | |
| Wire Guard Material | |
| Wire Strip Length | |
| Wire Termination | |
| Withstanding Voltage (Minimum @ VDE) | |
| Withstanding Voltage (Minimum @ cULus) |

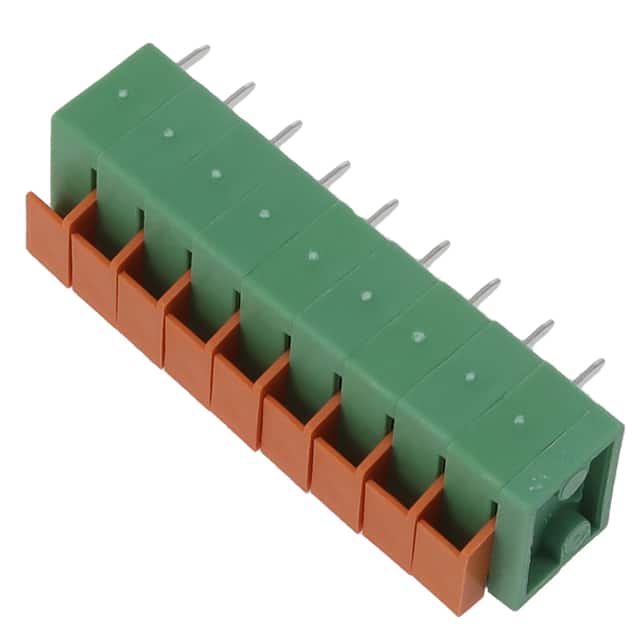

The Würth Elektronik 691401710009B is a 9-position, single-level screwless wire-to-board terminal block from the WR-TBL Series 401B. It features a 5.00mm pitch and horizontal entry orientation for easy wire routing. The push-button clamp termination allows tool-less wire insertion, accepting both solid and stranded wires from 24 to 14 AWG with a strip length of 10mm.
Electrical ratings are 10A (cULus) and 16A (VDE) per contact, with voltage ratings of 300VAC (cULus) and 450VAC (VDE). The through-hole mounting type is designed for JEDEC lead-free wave soldering only. The insulator is made of PA66 with UL94 V-0 flammability rating, color green, and the metal housing is brass with tin-over-nickel plated pins.
This terminal block is suitable for industrial control, lighting, and power distribution applications where reliable screwless connection and high current capacity are required. It is RoHS3 compliant and carries cULus (E315414) and VDE (40036896) certifications.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.55 | $4.55 |
| 10+ | $4.22 | $4.22 |
| 50+ | $4.01 | $4.01 |
| 100+ | $3.74 | $3.74 |
| 420+ | $3.20 | $3.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 9 positions with 1 level.
The pitch is 5.00mm (0.197 inches).
It is rated 10A (cULus) or 16A (VDE) per contact.
It is rated 300VAC (cULus) and 450VAC (VDE). Note: manufacturer page lists VDE rating as 250VAC, creating a conflict.
Through hole, designed for wave soldering.
It accepts solid and stranded wire from 24 AWG to 14 AWG.
Screwless - push button clamp (spring clamp).
