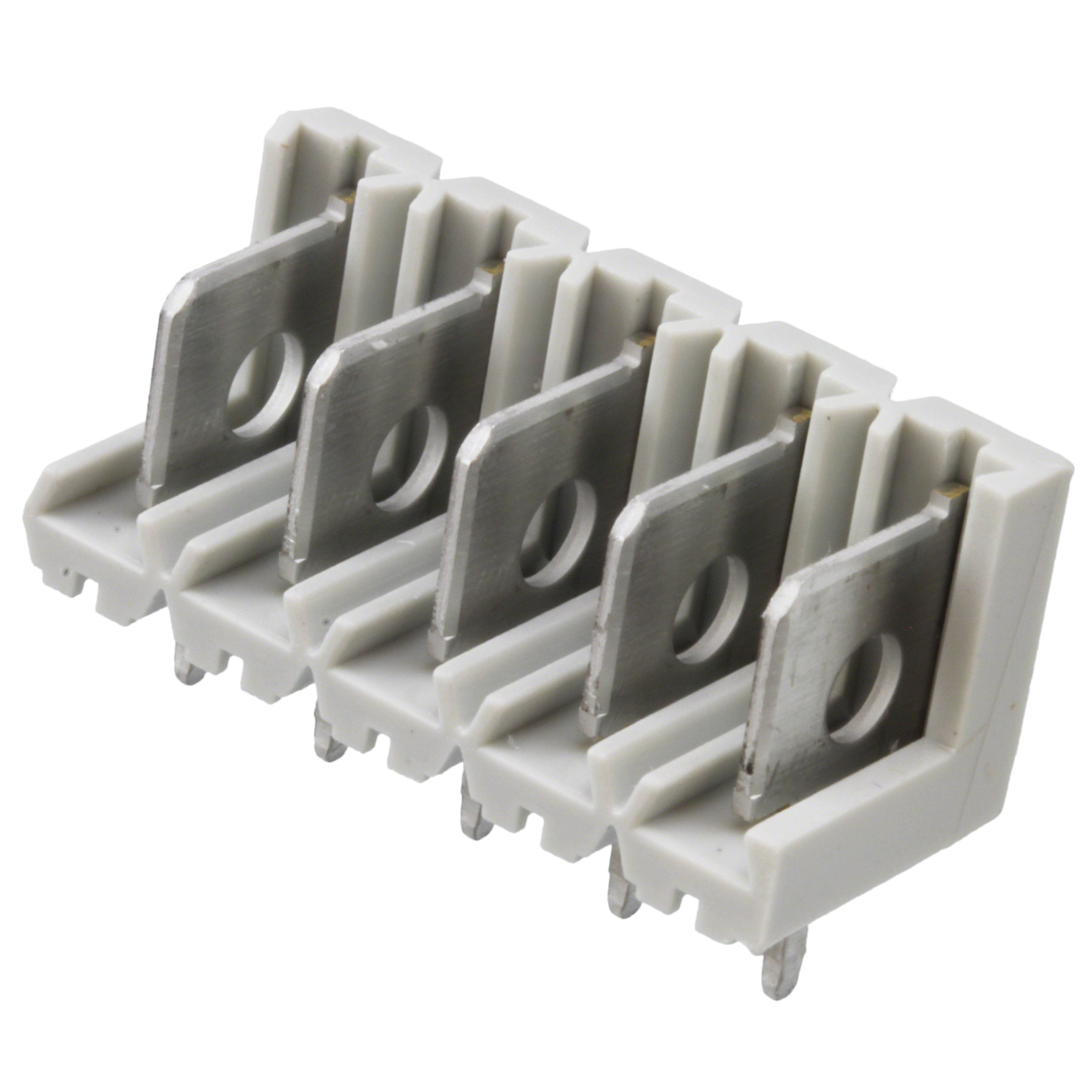

691386700005 5-position vertical male PCB header with 5.00mm pitch from Würth Elektronik's WR-TBL Series 386. Rated for 14A (cULus) and 300V AC, with through hole solder termination.
Mfr Part #:

691386700005

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
5-position vertical male PCB header with 5.00mm pitch from Würth Elektronik's WR-TBL Series 386. Rated for 14A (cULus) and 300V AC, with through hole solder termination.
✓ Total Stock: 200 pcs
$ Price Range: $0.78 - $1.41

691386700005 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
200 pcs
On Request
200 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691386700005 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Material
Contact Plating
Contact Resistance
Current
Header Orientation
Insulator Material
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Positions Per Level
Termination Style
Type
Voltage
Voltage Rating
View Similar Products (0)

691386700005 Description

Short technical summary and product information.

The Würth Elektronik 691386700005 is a 5-position vertical male PCB header from the WR-TBL Series 386, featuring a 5.00mm pitch. This header is designed for through hole mounting with solder termination, making it suitable for reliable PCB connections in terminal block applications.



Electrical ratings include a current rating of 14A (cULus) and 16A (VDE), with working voltages of 300V AC (cULus) and 250V AC (VDE). Withstanding voltage is 1600V AC (cULus) and 2200V AC (VDE). Contact resistance is 20 mΩ maximum. The insulator is made of PC (polycarbonate) with UL94 V-0 flammability rating, and contacts are copper alloy with tin over nickel plating.



Operating temperature range is -30°C to +120°C. The header is RoHS compliant and packaged in a box. It is certified under cULus (E150931) and VDE (40023195). This component is intended for general electronics equipment and is suitable for wave soldering processes.

691386700005 Quick Information

Product Type: Terminal Block Header
Series: 386
Canonical Name: Würth Elektronik WR-TBL Series 386 5.00mm Pitch 5-Position Vertical Male PCB Header
Subcategory: Male PCB Header

691386700005 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

691386700005 Estimated Pricing

Qty Low High
1+ $1.41 $1.41
10+ $1.25 $1.25
50+ $1.08 $1.08
100+ $0.94 $0.94
200+ $0.86 $0.86
400+ $0.78 $0.78

Estimated market price range - modelled values for guidance only, not live distributor offers.

691386700005 Features

  • 5-position vertical male PCB header.
  • 5.00mm pitch for compact designs.
  • Rated for 14A (cULus) and 16A (VDE).
  • Through hole solder termination.
  • Operating temperature -30°C to +120°C.

691386700005 Applications

  • Used in industrial control and automation systems.
  • Suitable for power distribution in terminal blocks.
  • Ideal for PCB-to-wire connections in lighting.

691386700005 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

This header has 5 positions.

What is the pitch of this terminal block header?

The pitch is 5.00mm (0.197 inches).

What is the current rating of the 691386700005?

The current rating is 14A (cULus) and 16A (VDE).

What is the voltage rating for this header?

Working voltage is 300V AC (cULus) and 250V AC (VDE).

What mounting type does this header use?

It uses through hole mounting with solder termination.

What is the operating temperature range?

The operating temperature range is -30°C to +120°C.

Is this component RoHS compliant?

Yes, it is RoHS compliant as verified from the datasheet.
