Mfr Part #:

691385700011

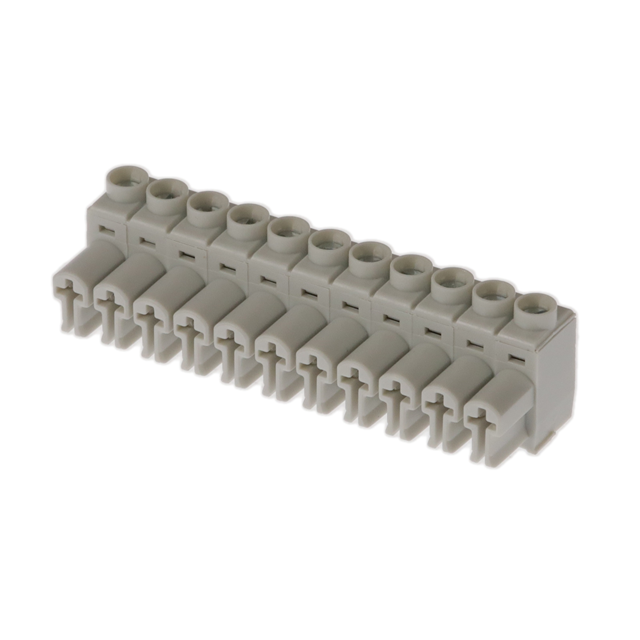

The Würth Elektronik 691385700011 is an 11-position terminal block plug with female sockets and 5.00mm pitch. It features a screw wire guard termination, 180° entry, and is rated for 14A (UL) / 16A (VDE) and 300V (UL) / 250V (VDE).

✓ Total Stock: 75 pcs

$ Price Range: $5.43

691385700011 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Chanetech ✓ Non-Authorised Inventory information	75 pcs On Request	75 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

691385700011 Description

Short technical summary and product information.

The Würth Elektronik 691385700011 is a terminal block plug from the WR-TBL Series 3857. It has 11 positions with a 5.00mm pitch and accepts female sockets. The plug is designed for free hanging (in-line) mounting with a 180° wire entry angle, making it suitable for direct wire connections.

Electrical ratings are 14A (UL) and 16A (VDE) current with working voltages of 300V (UL) and 250V (VDE). The withstanding voltage is 1.6kV (UL) and 2.5kV (VDE). Contact resistance is rated at 20 mΩ maximum. The termination uses a screw with leaf spring and wire guard, accepting solid or stranded wire from 24 to 12 AWG (0.2-3.31 mm²). Torque is specified at 4 Lb·In (0.5 Nm) and strip length is 7 mm.

Construction materials include a polycarbonate (PC) insulator with UL94 V-0 flammability rating, steel/zinc metal housing, terminal screw, and phosphor bronze/nickel-tin wire guard. The plug is RoHS compliant (verified via datasheet) and is gray in color. Operating temperature range is -30°C to 120°C.

This component is commonly used in industrial control, building automation, and power distribution systems where reliable screw termination and compact design are required. Packaging is in box form.

691385700011 Quick Information

Product Type: Terminal Block Plug

Series: WR-TBL Series 3857

Canonical Name: Plug, Female Sockets, 11 Positions, 5.00mm Pitch, Wire Guard, 180° Entry, Free Hanging

Subcategory: Terminal Block Plugs

691385700011 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

691385700011 Estimated Pricing

Qty	Low	High
25+	$5.43	$5.43

Estimated market price range - modelled values for guidance only, not live distributor offers.

691385700011 Features

11-position plug with 5.00mm pitch.
Screw wire guard termination for secure connection.
Rated for 14A (UL) and 300V (UL).
Free hanging (in-line) mounting.
Operating temperature range -30°C to 120°C.

691385700011 Applications

Used in industrial control equipment.
Suitable for PCB header mating.
Ideal for power distribution systems.
Common in building automation applications.

691385700011 FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the 691385700011 have?

It has 11 positions.

What is the pitch of this terminal block plug?

The pitch is 5.00mm (0.197 inches).

What is the current rating of the 691385700011?

14 A under UL and 16 A under VDE.

What is the voltage rating?

300 V under UL and 250 V under VDE.

What is the mounting type of this plug?

Free Hanging (In-Line) mounting.

What wire gauge is supported?

Solid and stranded wire from 24 to 12 AWG (0.2-3.31 mm²).

What is the operating temperature range?

-30°C to 120°C.

Category	Headers, Plugs and Sockets
Manufacturer Name	Würth Elektronik
Color	Gray
Contact Mating Finish	Zinc
Contact Resistance	20 mΩ
Current	14 A
Failure Rate	WR-TBL Series 3857
Insulator Material	PC
Lead Spacing	5.0 mm
Lead Style	Screw - Leaf Spring, Wire Guard
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	11
Operating Temperature	-30°C ~ 120°C
Pitch	5.00mm (0.197")
Plug Wire Entry	180°
Positions Per Level	11
Screw Size	M2.5
Termination Style	Screw - Leaf Spring, Wire Guard
Torque	4 Lb·In / 0.5 Nm
Type	Plug, Female Sockets
Voltage	300 V
Wire Gauge or Range	0.2-3.31 mm² (24-12 AWG)
