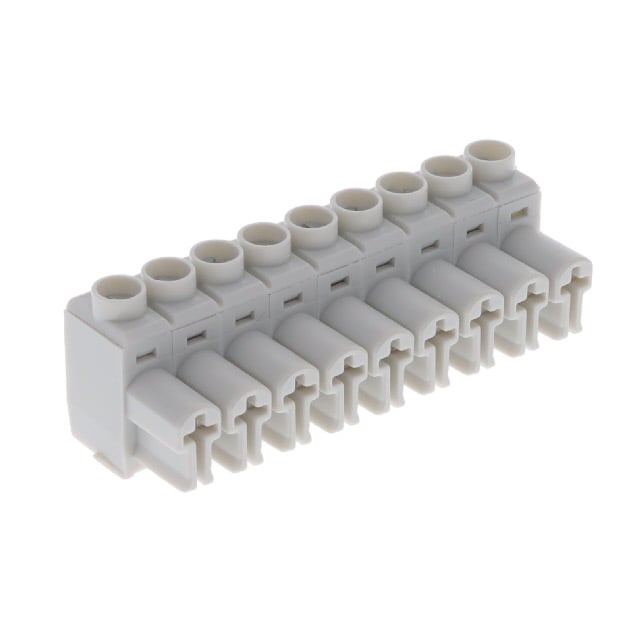

691385700009 Würth Elektronik WR-TBL Series 385 9-position female plug with 5.00mm pitch, screw termination, and free hanging mounting. Rated 14A/300V cULus and 16A/250V VDE.
Mfr Part #:

691385700009

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Würth Elektronik WR-TBL Series 385 9-position female plug with 5.00mm pitch, screw termination, and free hanging mounting. Rated 14A/300V cULus and 16A/250V VDE.
✓ Total Stock: 10 pcs
$ Price Range: $3.04 - $5.38

691385700009 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691385700009 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Material
Contact Mating Finish
Contact Plating
Current
Insulator Flammability Rating
Insulator Material
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Plug Wire Entry
Positions Per Level
Termination Style
Torque
Type
Voltage
Wire Gauge or Range
View Similar Products (0)

691385700009 Description

Short technical summary and product information.

The Würth Elektronik 691385700009 is a 9-position female plug from the WR-TBL Series 385, designed for pluggable terminal block applications. It features a 5.00mm pitch and uses a screw termination with leaf spring and wire guard for secure wire connections. The plug accepts solid or stranded wire from 12 to 24 AWG (0.2-3.31 mm²) with a stripping length of 7 mm.



Electrical ratings are 14 A / 300 VAC (cULus) and 16 A / 250 VAC (VDE), with a maximum contact resistance of 20 mΩ. The insulator is made of polycarbonate (PC) with a UL94 V-0 flammability rating, and contacts are steel with zinc plating. The operating temperature range is -30°C to +120°C.



This plug is free hanging (in-line) with 180° wire entry, making it suitable for cable-to-board connections. It is RoHS compliant and carries cULus (E150931) and VDE (40026528) approvals. Packaging is in boxes.

691385700009 Quick Information

Product Type: Terminal Block Plug
Series: 385
Canonical Name: WR-TBL Series 385 - 5.00mm Female Plug, 9 Positions, Screw Termination
Subcategory: Pluggable Connector

691385700009 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

691385700009 Estimated Pricing

Qty Low High
1+ $5.38 $5.38
10+ $4.79 $4.79
50+ $4.44 $4.44
100+ $3.98 $3.98
400+ $3.04 $3.04

Estimated market price range - modelled values for guidance only, not live distributor offers.

691385700009 Features

  • 9-position female plug with 5.00mm pitch.
  • Screw termination with leaf spring and wire guard.
  • Rated 14A/300V cULus and 16A/250V VDE.
  • Accepts 12 to 24 AWG solid or stranded wire.
  • Free hanging (in-line) mounting with 180° wire entry.

691385700009 Applications

  • Used in industrial control and automation systems.
  • Suitable for power distribution and signal connections.
  • Ideal for cable-to-board pluggable terminal block applications.
  • Common in building automation and HVAC equipment.

691385700009 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 691385700009 have?

It has 9 positions.

What is the pitch of this terminal block plug?

The pitch is 5.00 mm (0.197 inches).

What is the current rating of the 691385700009?

The current rating is 14 A (cULus) and 16 A (VDE).

What is the voltage rating?

Working voltage is 300 VAC (cULus) and 250 VAC (VDE).

What mounting type does this plug use?

Free hanging (in-line) mounting.

What wire sizes does the 691385700009 accept?

It accepts solid or stranded wire from 12 to 24 AWG (0.2-3.31 mm²).

What is the operating temperature range?

-30°C to +120°C.
