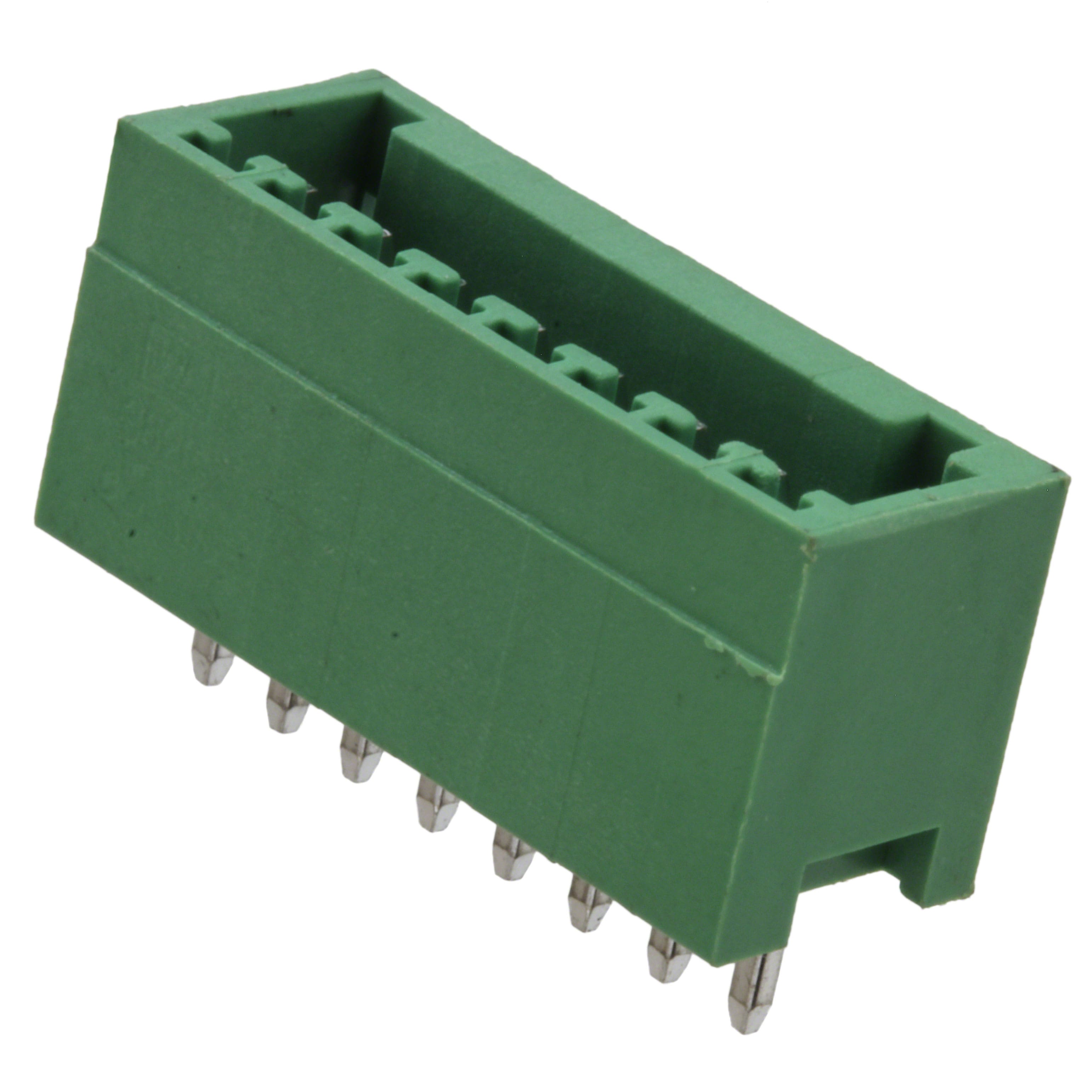

691382000008 Würth Elektronik WR-TBL Series 382 vertical PCB header with 8 positions on 2.50mm pitch, through hole mounting, rated 4A and 160V AC.
Mfr Part #:

691382000008

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Würth Elektronik WR-TBL Series 382 vertical PCB header with 8 positions on 2.50mm pitch, through hole mounting, rated 4A and 160V AC.
✓ Total Stock: 2 pcs
$ Price Range: $1.36 - $2.45

691382000008 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691382000008 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Color
Contact Material
Contact Mating Finish
Contact Plating
Contact Resistance
Current
Current Rating
Header Orientation
Industrial Grade
Insulator Flammability Rating
Insulator Material
Lead Spacing
Lead Style
Medical Grade
Military Grade
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Positions Per Level
Termination Style
Type
Voltage
Voltage Rating
Withstanding Voltage
View Similar Products (0)

691382000008 Description

Short technical summary and product information.

This Würth Elektronik WR-TBL Series 382 header is a vertical through-hole PCB header with 8 positions on 2.50mm pitch. It features a shrouded (4 side) design with male pins and a green PA66 insulator rated UL94 V-0. The contacts are made of copper alloy with tin over nickel plating, providing a contact resistance of 20 mΩ. The header is rated for 4A continuous current and 160V AC working voltage, with a withstanding voltage of 1320V AC. It is RoHS compliant and carries cULus approval (E315414). The operating temperature range is -40°C to +105°C, making it suitable for general purpose industrial electronics.

691382000008 Quick Information

Product Type: Header, Male Pins, Shrouded (4 Side)
Series: 382
Canonical Name: Würth Elektronik WR-TBL Series 382 – 2.50mm Vertical PCB Header, 8 Positions, Through Hole, Tin Plating
Subcategory: Vertical PCB Header

691382000008 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

691382000008 Estimated Pricing

Qty Low High
1+ $2.45 $2.45
10+ $2.17 $2.17
50+ $1.89 $1.89
100+ $1.64 $1.64
475+ $1.49 $1.49
950+ $1.36 $1.36

Estimated market price range - modelled values for guidance only, not live distributor offers.

691382000008 Features

  • 8 position vertical shrouded PCB header.
  • 2.50mm pitch for compact designs.
  • Rated for 4A continuous current.
  • cULus approved with E315414 certification.
  • RoHS compliant with UL94 V-0 insulator.

691382000008 Applications

  • Ideal for pluggable terminal block interconnects.
  • Suitable for industrial control and automation.
  • Used in power supply and lighting PCBs.
  • Designed for general electronic equipment.

691382000008 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 691382000008 header have?

8 positions in a single level.

What is the pitch of this Würth Elektronik header?

2.50 mm.

What is the current rating of the 691382000008?

4 A.

What is the voltage rating for the 691382000008?

160 V AC (working voltage).

What mounting style does the 691382000008 use?

Through hole, vertical orientation, with solder termination.

What is the operating temperature range?

-40°C to +105°C.

Is the 691382000008 RoHS compliant?

Yes, RoHS compliant.
