| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Material | |
| Contact Mating Finish | |
| Contact Plating | |
| Contact Resistance | |
| Current | |
| Current Rating | |
| Features | |
| Insulator Flammability Rating | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge or Range | |
| Withstanding Voltage |

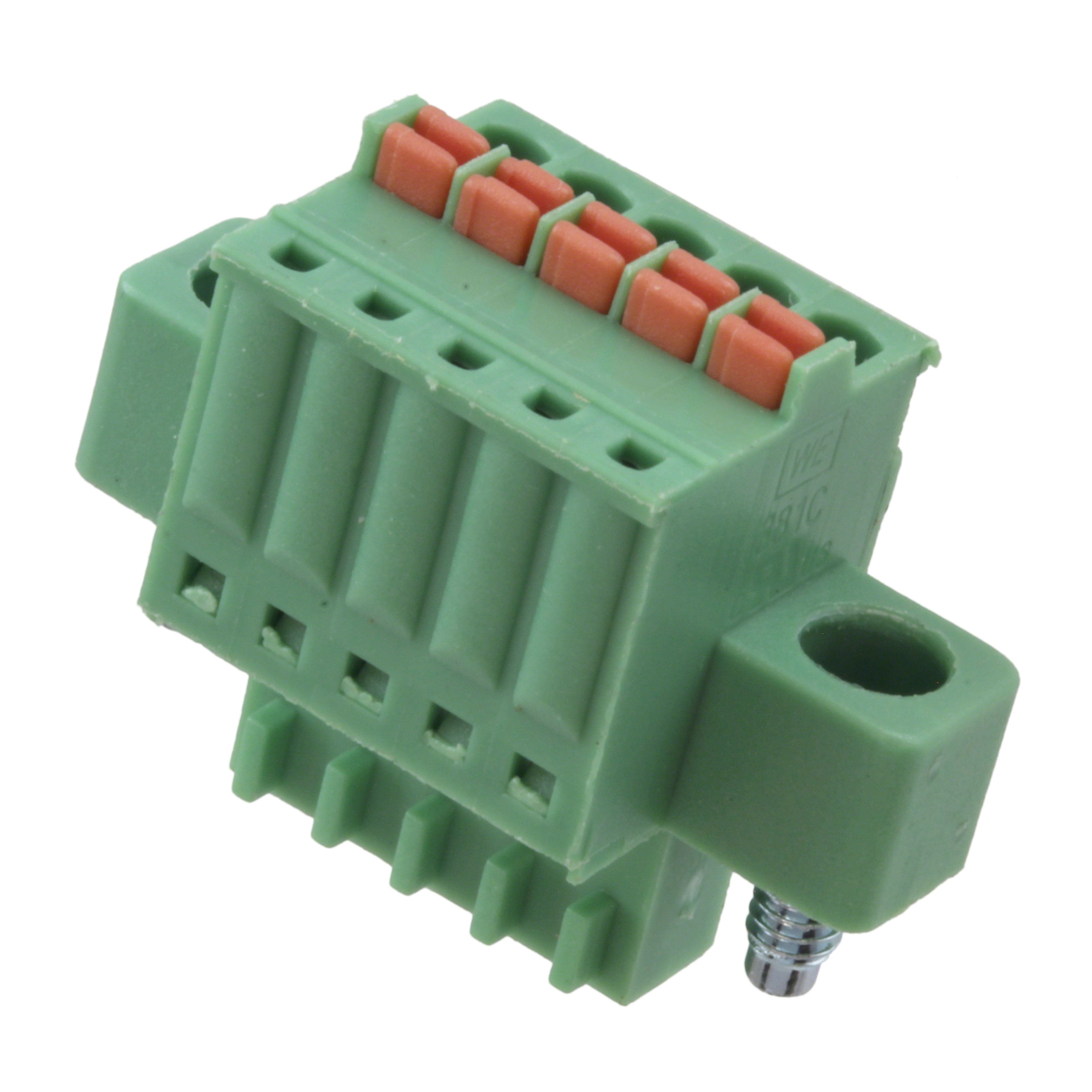

The Würth Elektronik 691381030005 is a 5-position pluggable terminal block plug from the WR-TBL Series 381. It features a 2.50mm pitch and a vertical cable entry design with screwless leg spring, push-in spring termination for fast and reliable wire connection. The plug accepts solid and stranded wires from 28 to 20 AWG with a strip length of 6-8 mm.
Rated for 12A at 300V AC, this plug is suitable for a wide range of industrial and commercial applications. The insulator is made of green PA66 with a UL94 V-0 flammability rating, and contacts are copper alloy with tin over nickel plating. The plug includes a mating flange for secure connection to matching headers.
Packaged in a box, this component is RoHS compliant and cULus approved (E315414). It is designed for free hanging (in-line) mounting and operates over a temperature range of -40°C to +105°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.05 | $5.05 |
| 10+ | $4.47 | $4.47 |
| 50+ | $3.89 | $3.89 |
| 100+ | $3.38 | $3.38 |
| 240+ | $3.07 | $3.07 |
| 480+ | $2.79 | $2.79 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5 positions in a single level.
2.50mm.
12A per the datasheet; note a cULus rating of 4A is also listed on the manufacturer page.
300V AC per the datasheet; the manufacturer page lists 160V AC working voltage.
Free hanging (in-line) mounting.
28 to 20 AWG solid and stranded wire.
Yes, RoHS compliant per the datasheet.
