| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Color | |
| Contact Material | |
| Contact Mating Finish | |
| Contact Plating | |
| Contact Resistance | |
| Current | |
| Current Rating | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

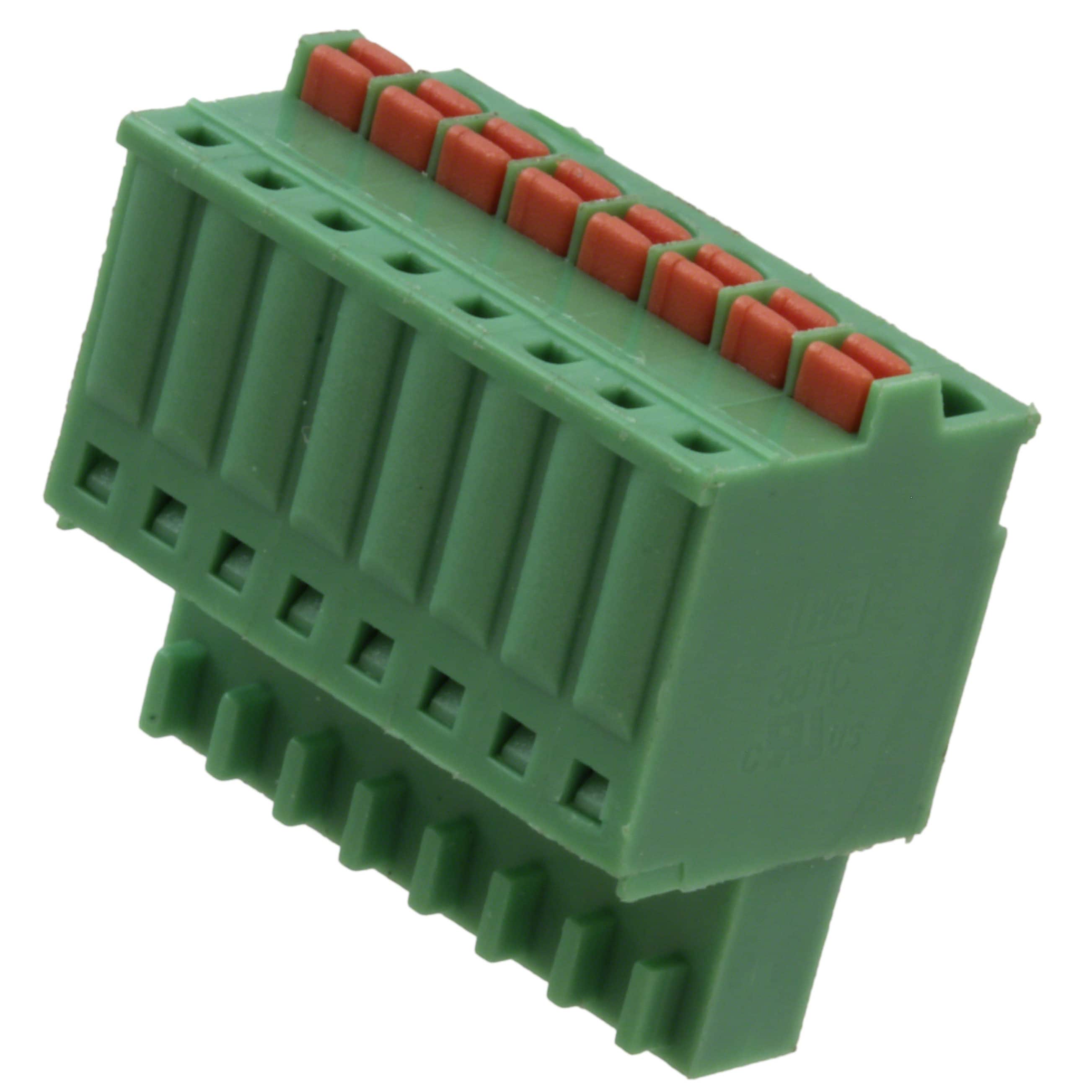

The Würth Elektronik 691381000008 is a WR-TBL Series 381 terminal block plug with 8 positions arranged in a single row at 2.5mm pitch. It features a screwless push-in spring termination style for quick and reliable wire connections without tools. The plug is designed for free hanging (in-line) mounting with 180° wire entry.
The insulator is made of green PA66 with UL94 V-0 flammability rating. Contacts are copper alloy with tin over nickel plating. The plug accepts solid or stranded wire from 16 to 24 AWG with a strip length of 6-8 mm. Electrical ratings per datasheet are 12A current and 300V AC working voltage, with a withstanding voltage of 2500 VAC/min. Contact resistance is 20 mΩ maximum. The component is cULus certified (E315414) and RoHS compliant.
This plug is suitable for wire-to-board connections in industrial control, automation, and power distribution applications. It is packaged in a box for handling and storage. For design-in, engineers should verify the current and voltage ratings against the conflicting manufacturer page specifications (4A, 160V cULus) and consult the latest datasheet or manufacturer for the intended application.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.67 | $7.67 |
| 10+ | $6.79 | $6.79 |
| 50+ | $5.90 | $5.90 |
| 100+ | $5.13 | $5.13 |
| 275+ | $4.67 | $4.67 |
| 450+ | $4.24 | $4.24 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions in a single level.
2.5 mm.
Datasheet specifies 12A; manufacturer page lists 4A (cULus). Verify for your application.
Datasheet specifies 300V AC; manufacturer page lists 160V AC (cULus). Verify for your application.
Free hanging (in-line) plug with 180° wire entry.
-40°C to 105°C.
Datasheet specifies 16-24 AWG; manufacturer page specifies 28-20 AWG.
