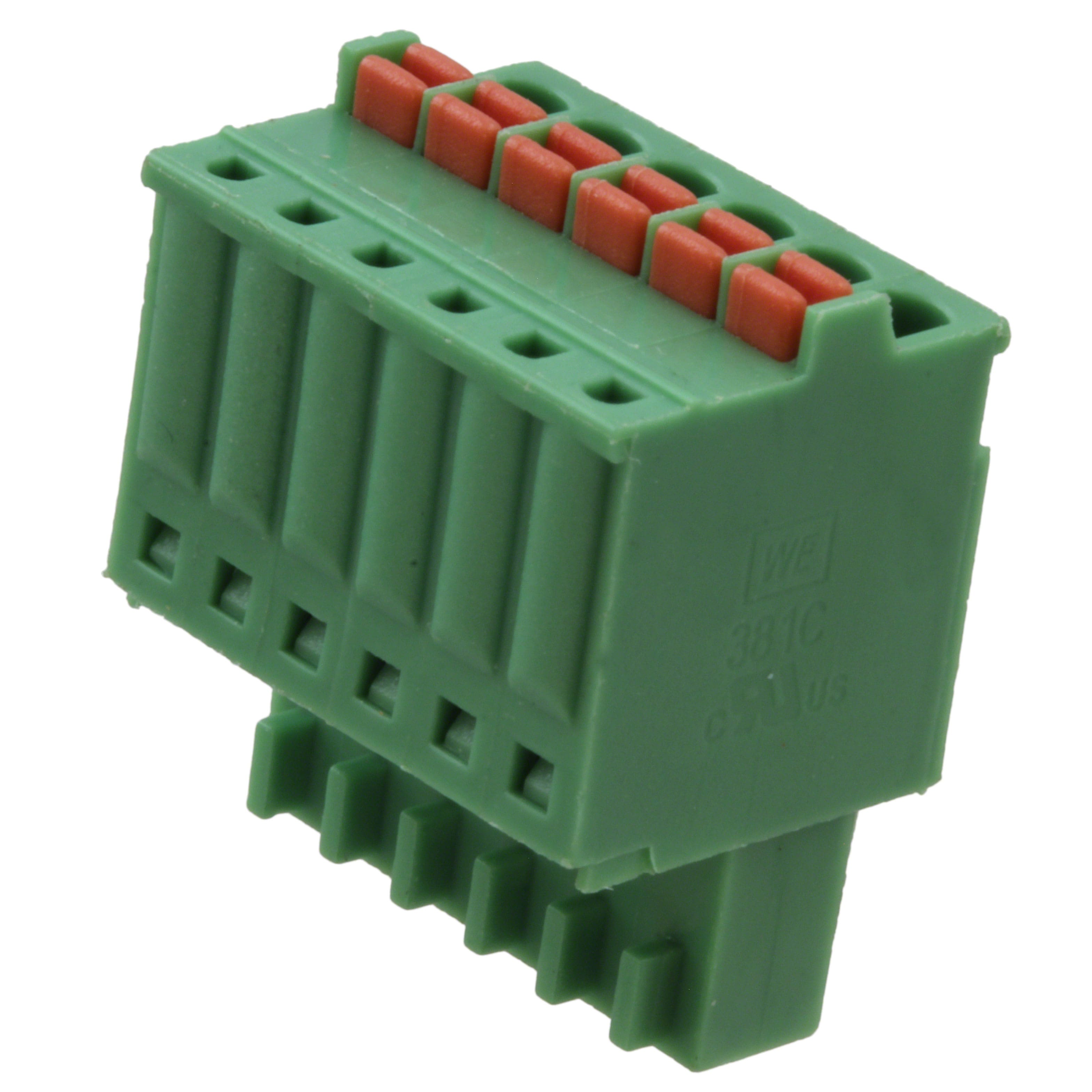

The Würth Elektronik 691381000006 is a 6-position terminal block plug from the WR-TBL Series 381, featuring a 2.5mm pitch and screwless push-in spring termination for quick, tool-less wiring. It is designed for free hanging (in-line) mounting with a vertical cable entry (180°). The plug accepts 28-20 AWG solid or stranded wire with a strip length of 6-8 mm.
Electrically, the plug is rated for 4 A continuous current and 160 V AC working voltage per cULus certification (E315414). It has a withstanding voltage of 2500 V AC (cULus) and a maximum contact resistance of 20 mΩ. The operating temperature range is -40°C to +105°C.
Constructed with a green PA66 insulator (UL94 V-0), copper alloy contacts with tin over nickel plating, and a stainless steel spring, the plug is RoHS compliant. It is supplied in box packaging and is suitable for industrial control, building automation, and power distribution applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.75 | $5.75 |
| 10+ | $5.09 | $5.09 |
| 50+ | $4.43 | $4.43 |
| 100+ | $3.85 | $3.85 |
| 335+ | $3.50 | $3.50 |
| 670+ | $3.18 | $3.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The plug has 6 positions, with 6 positions per level and 1 level.
The pitch is 2.50 mm (0.098 inches).
The current rating is 4 A per the manufacturer page (cULus certified). Note: the datasheet lists 12 A, but this may be for different conditions.
The working voltage is 160 V AC (cULus) per the manufacturer page. The datasheet lists 300 V AC.
It is designed for free hanging (in-line) mounting with a 180° wire entry angle.
The manufacturer page specifies 28-20 AWG (0.08-0.5 mm²) solid or stranded wire. The datasheet lists 24-16 AWG, so verify with manufacturer for your specific wire.
The operating temperature range is -40°C to +105°C.
