Mfr Part #:

691374500016B

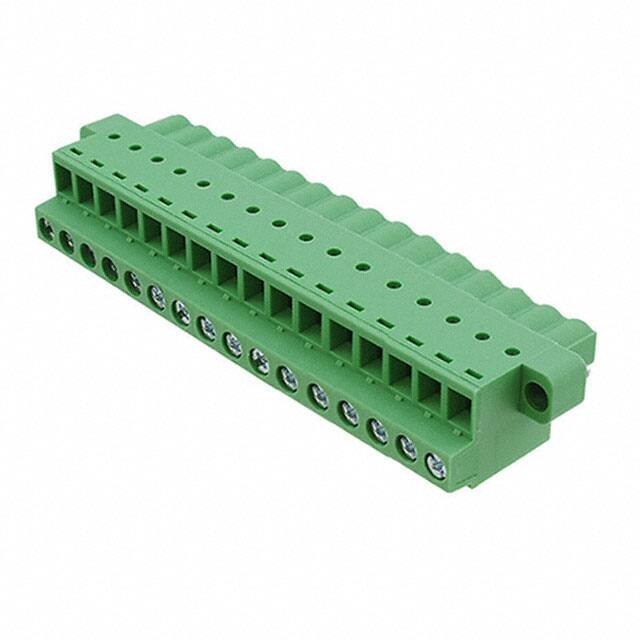

Würth Elektronik 691374500016B is a 16-position terminal block plug with 5.08mm pitch, featuring screw-pressure clip termination and free hanging mounting. It is rated for 16A and 300V, with UL94 V-0 flammability rating.

✓ Total Stock: 3,840 pcs

$ Price Range: $10.55

691374500016B Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Fe Components ✓ Non-Authorised Inventory information	3,840 pcs On Request	3840 pcs	On Request	3	On Request	On Request	On Request	On Request	On Request

691374500016B Description

Short technical summary and product information.

The 691374500016B is a 16-position plug with female sockets from Würth Elektronik's 374B series. It has a 5.08mm pitch and features a screw-pressure clip termination for secure wire connections. The plug is designed for free hanging (in-line) mounting with 180° wire entry.

Electrical ratings include 16A current and 300V voltage (cULus) or 250V (VDE), with a withstanding voltage of 2kV and contact resistance of 20mOhm max. It accepts solid and stranded wires from 24-12 AWG (0.205-3.31 mm²). The wire stripping length is 10mm and torque specification is 0.45 Nm.

The insulator is made of green PA66 with UL94 V-0 flammability rating. The metal housing, terminal screw, and wire guard are steel with zinc plating. The plug includes mating flanges and retention latches (non-wire side) for secure mating. Operating temperature range is -40°C to 105°C.

The part is packaged in a box. It is RoHS compliant and lead-free. This terminal block plug is suitable for industrial control, power distribution, and general wiring applications where a reliable screw connection is required.

691374500016B Quick Information

Product Type: Terminal Block Plug

Series: 374B

Canonical Name: TERM BLOCK PLUG 16POS STR 5.08MM

Subcategory: Terminal Block Plug

691374500016B Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Lead Free

691374500016B Estimated Pricing

Qty	Low	High
20+	$10.55	$10.55

Estimated market price range - modelled values for guidance only, not live distributor offers.

691374500016B Features

16 positions with 5.08mm pitch in a single level.
Screw-pressure clip termination for secure wire clamping.
Rated for 16A current and 300V voltage (cULus).
Accepts wires from 24-12 AWG (0.205-3.31 mm²).
UL94 V-0 flammability rated PA66 insulator.

691374500016B Applications

Used in industrial control panel wiring.
Ideal for power distribution applications.
Suitable for general terminal block connections.

691374500016B FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does this terminal block plug have?

16 positions.

What is the pitch of the 691374500016B?

5.08mm (0.200 inches).

What is the current rating of this terminal block?

16 A.

What is the voltage rating?

300 V (cULus) or 250 V (VDE).

What is the mounting type?

Free Hanging (In-Line).

What is the termination style?

Screw - Pressure Clip.

What wire sizes are compatible?

Solid and stranded wires from 24-12 AWG (0.205-3.31 mm²).

Category	Headers, Plugs and Sockets
Manufacturer Name	Würth Elektronik
Color	Green
Contact Resistance	20 mOhm max
Current	16 A
Features	Mating Flange, Retention Latches (Non-Wire Side)
Insulator Material	PA 66
Lead Spacing	5.08 mm
Lead Style	Screw - Pressure Clip
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	16
Operating Temperature	-40°C ~ 105°C
Pitch	5.08mm (0.200")
Plug Wire Entry	180°
Positions Per Level	16
Screw Size	M2.6
Termination Style	Screw - Pressure Clip
Torque	4.5 Lb-In / 0.45 Nm
Type	Plug, Female Sockets
Voltage	300 V
Wire Gauge or Range	0.2-3.3 mm²
Withstanding Voltage	2 kV
