| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Material | |
| Contact Plating | |
| Contact Resistance | |
| Current | |
| Current Rating | |
| Features | |
| Insulator Flammability Rating | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| SVHC Present | |
| Screw Size | |
| Termination Style | |
| Torque | |
| Type | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge or Range | |
| Withstanding Voltage |

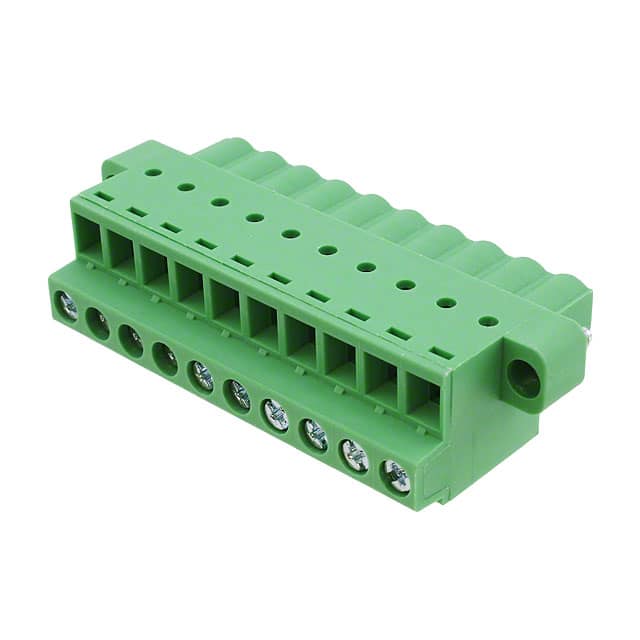

The 691374500010B is a terminal block plug from Würth Elektronik's WR-TBL 374B series. It is a 10-position, single-level plug with female sockets and a pitch of 5.08mm. The plug features a free hanging (in-line) mounting type and a screw pressure clip termination style for secure wire connections.
Electrical ratings include a current rating of 16A and a voltage rating of 300V. The contact resistance is 20 mΩ max, and the withstanding voltage is 2 kV. The operating temperature range is -40°C to 105°C. The insulator is made of PA66 with a UL94 V-0 flammability rating. Contacts are steel with zinc plating, and the terminal screw is steel zinc plating.
The plug accepts solid and stranded wires from 24-12 AWG (0.205-3.31 mm²). The wire strip length is 10 mm, and the recommended torque is 0.45 Nm. The plug wire entry is 180° (vertical), and it features mating flanges and retention latches on the non-wire side for secure mating.
The component is RoHS compliant and has cULus and VDE approvals. It is packaged in a box.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.03 | $10.03 |
| 10+ | $8.98 | $8.98 |
| 100+ | $7.76 | $7.76 |
| 250+ | $6.94 | $6.94 |
| 500+ | $6.53 | $6.53 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions.
5.08 mm (0.200 inches).
16 A.
300 V.
Free hanging (in-line).
Screw - Pressure Clip.
24-12 AWG solid and stranded.
