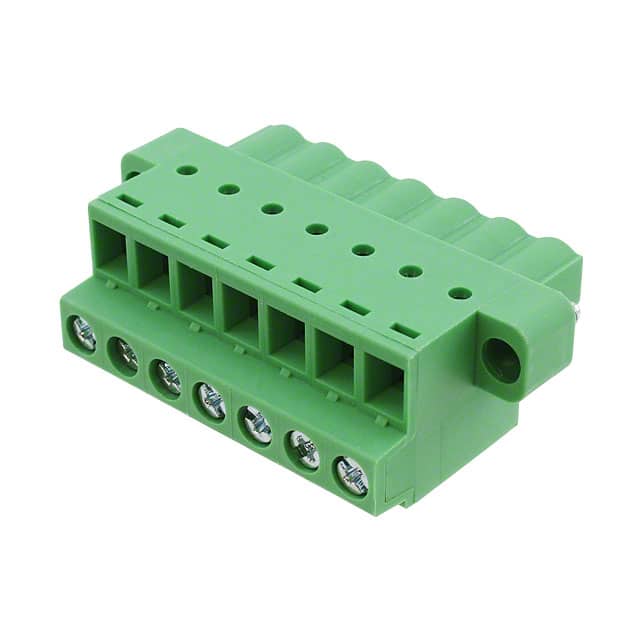

691374500007B Würth Elektronik 691374500007B is a 7-position, 5.08mm pitch terminal block plug with female sockets, screw pressure clip termination, and free hanging mounting. Rated 16A at 300V.
Mfr Part #:

691374500007B

Available from 2 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Würth Elektronik 691374500007B is a 7-position, 5.08mm pitch terminal block plug with female sockets, screw pressure clip termination, and free hanging mounting. Rated 16A at 300V.
✓ Total Stock: 250 pcs
$ Price Range: $4.54 - $6.96

691374500007B Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
240 pcs
On Request
240 pcs On Request 10 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691374500007B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Material
Contact Plating
Contact Resistance
Current
Features
Insulator Material
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Plug Wire Entry
Positions Per Level
Termination Style
Torque
Type
Voltage
Wire Gauge or Range
View Similar Products (0)

691374500007B Description

Short technical summary and product information.

The Würth Elektronik 691374500007B is a 7-position terminal block plug from the WR-TBL 374B series, designed for cable-to-board interconnect applications. It uses a screw pressure clip termination mechanism and accepts solid or stranded wire from 24-12 AWG (0.2-3.3mm²).



Electrical ratings include 16A current and 300V AC operating voltage (cULus), with 250V AC under VDE standards. The PA66 insulator has a UL94 V-0 flammability rating and the housing is available in green. The 5.08mm pitch and 180° wire entry simplify wiring in tight spaces.



The plug features a mating flange and retention latches for secure connection to a compatible header. It is RoHS and REACH compliant and packaged in a box. This part is suitable for industrial control, power distribution, and building automation systems.

691374500007B Quick Information

Product Type: Terminal Block Plug
Series: 374B
Canonical Name: WR-TBL 374B 5.08mm 7-Position Plug with Excenter Clamp, Female Sockets, Free Hanging
Subcategory: Pluggable Connector

691374500007B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

691374500007B Estimated Pricing

Qty Low High
1+ $6.96 $6.96
10+ $6.24 $6.24
100+ $5.39 $5.39
250+ $4.82 $4.82
500+ $4.54 $4.54

Estimated market price range - modelled values for guidance only, not live distributor offers.

691374500007B Features

  • 7-position, 5.08mm pitch terminal block plug.
  • Screw pressure clip termination for secure connections.
  • Free hanging (in-line) mounting with 180° wire entry.
  • Rated for 16A at 300V (cULus) / 250V (VDE).
  • Includes mating flange and retention latches.

691374500007B Applications

  • Used in industrial control and automation systems.
  • Suitable for power distribution and power supplies.
  • Employed in building management and HVAC equipment.
  • Ideal for lighting control and signal interfacing.

691374500007B FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of this terminal block?

The operating temperature range is -40°C to +105°C.

What is the current rating of the 691374500007B?

The current rating is 16A per contact for both cULus and VDE standards.

What voltage is this terminal block rated for?

Working voltage is 300V AC (cULus) and 250V AC (VDE).

What wire sizes does this plug accept?

It accepts solid and stranded wire from 24 to 12 AWG (0.205 to 3.31mm²).

What is the pitch of this terminal block?

The pitch is 5.08mm (0.200 inches).

What is the mounting style of this plug?

It is designed for free hanging (in-line) mounting, not PCB mounting.

Does this part have any certifications?

It is cULus approved (file E315414) and VDE approved (certificate 40038804). The insulator has a UL94 V-0 flammability rating.
