| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11 pcs
|
11 pcs | On Request | 5 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Resistance | |
| Current | |
| Current Rating | |
| Features | |
| Halogen Free | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Torque | |
| Type | |
| Voltage | |
| Wire Gauge or Range | |
| Withstanding Voltage | |
| Working Voltage |

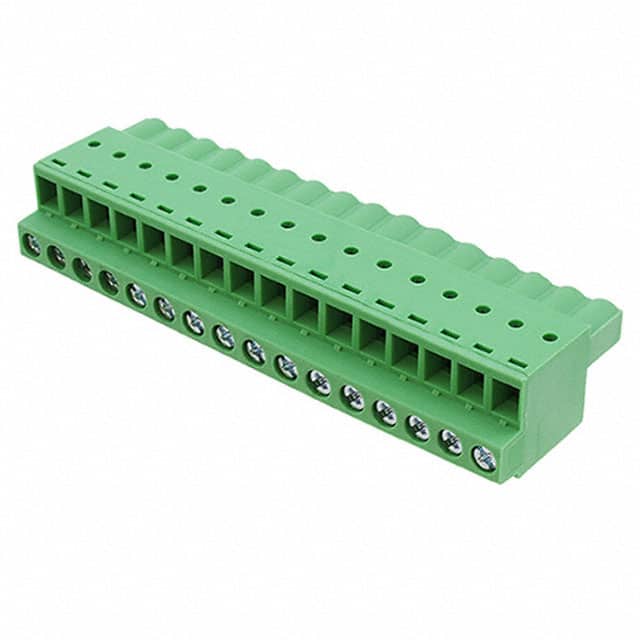

This terminal block plug from Würth Elektronik, part number 691373500016B, is a 16-position plug with a 5.08mm pitch. It features a free hanging (in-line) mounting style and uses a screw-pressure clip termination method for secure wire connections. The plug is rated for 16A current and 300VAC (cULus) or 250VAC (VDE) working voltage, with a withstanding voltage of 2kV. Contact resistance is 20 mOhm max.
The insulator is made of PA 66 with a UL94-V0 flammability rating, and the metal housing, terminal screw, and wire guard are steel zinc plated. It accepts 24-12 AWG solid or stranded wire with a strip length of 10mm and requires a torque of 0.45 Nm. Operating temperature range is -40°C to 105°C.
This plug is designed for use in general electronics equipment and comes in box packaging. It is RoHS compliant and suitable for industrial control, power distribution, and wire-to-board applications.
| Qty | Low | High |
|---|---|---|
| 30+ | $9.66 | $9.66 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
16 positions in a single level.
5.08 mm (0.200 inch).
16 A.
300 VAC (cULus) and 250 VAC (VDE).
Free hanging (in-line).
24-12 AWG solid or stranded.
-40°C to 105°C.
