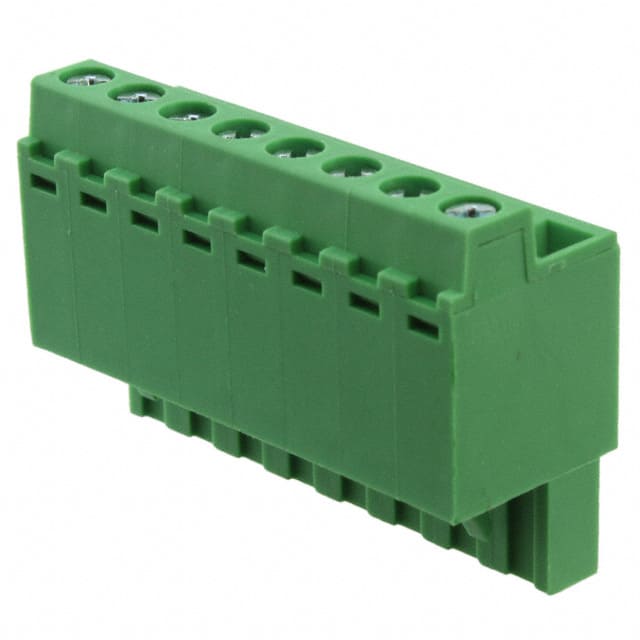

691373500008B 8-position terminal block plug with 5.08mm pitch, screw termination, and vertical cable entry. Rated for 16A and 300V.
Mfr Part #:

691373500008B

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
8-position terminal block plug with 5.08mm pitch, screw termination, and vertical cable entry. Rated for 16A and 300V.
✓ Total Stock: 45 pcs
$ Price Range: $4.54 - $6.96

691373500008B Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
45 pcs
On Request
45 pcs On Request 5 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691373500008B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Material
Contact Plating
Contact Resistance
Current
Features
Halogen Free
Insulator Flammability Rating
Insulator Material
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Plug Wire Entry
Positions Per Level
SVHC Present
Screw Size
Termination Style
Torque
Type
Voltage
Voltage Rating
Wire Gauge or Range
View Similar Products (0)

691373500008B Description

Short technical summary and product information.

The Würth Elektronik 691373500008B is a WR-TBL Series 373B plug with excenter clamp, featuring 8 positions at 5.08mm pitch. It uses screw termination with a pressure clip for secure wire connections. The plug accepts solid or stranded wire from 12 to 24 AWG (0.205 to 3.31 mm²) with a stripping length of 10 mm and requires a torque of 0.45 Nm.



Electrical ratings include 16A current (cULus and VDE) and working voltage of 300V (cULus) or 250V (VDE). Withstanding voltage is 2000V (cULus) and 2200V (VDE). Contact resistance is 20 mΩ maximum. The insulator is PA66 with UL94 V-0 flammability rating, and contacts are steel with zinc plating.



This plug is designed for free hanging (in-line) mounting with 180° wire entry. It includes retention latches on the non-wire side. Operating temperature range is -40°C to 105°C. Packaging is in boxes.

691373500008B Quick Information

Product Type: Terminal Block Plug
Series: 373B
Canonical Name: WR-TBL Series 373B Plug with Excenter Clamp, 8 Positions, 5.08mm Pitch, Vertical Cable Entry
Subcategory: Pluggable Connector

691373500008B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

691373500008B Estimated Pricing

Qty Low High
1+ $6.96 $6.96
10+ $6.24 $6.24
50+ $5.39 $5.39
100+ $4.82 $4.82
250+ $4.54 $4.54

Estimated market price range - modelled values for guidance only, not live distributor offers.

691373500008B Features

  • 8 positions with 5.08mm pitch.
  • Screw termination with pressure clip.
  • Rated for 16A and 300V.
  • Free hanging (in-line) mounting.
  • Operating temperature -40°C to 105°C.

691373500008B Applications

  • Ideal for industrial control wiring.
  • Used in power distribution systems.
  • Suitable for signal and power connections.
  • Common in automation and machinery.

691373500008B FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this terminal block plug have?

8 positions.

What is the pitch of this plug?

5.08 mm.

What is the current rating?

16 A (cULus and VDE).

What is the voltage rating?

300 V (cULus) and 250 V (VDE).

What mounting type does this plug use?

Free hanging (in-line).

What wire gauge is compatible?

Solid and stranded wire from 12 to 24 AWG (0.205 to 3.31 mm²).

What is the operating temperature range?

-40°C to 105°C.
