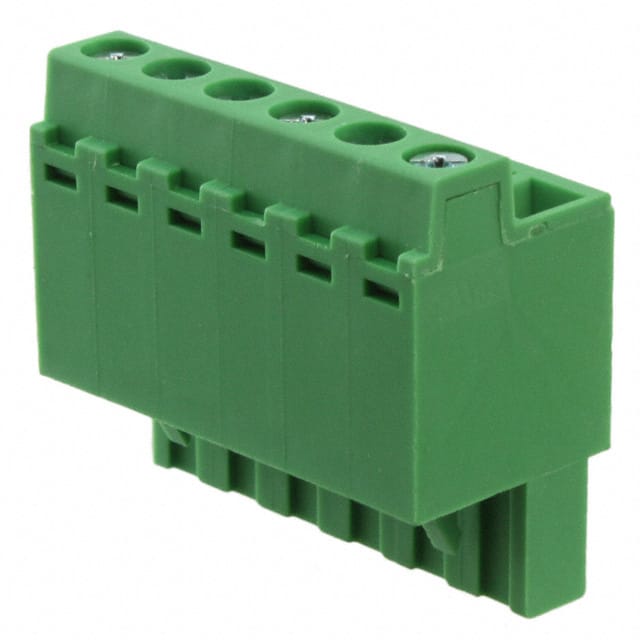

691373500006B Würth Elektronik WR-TBL Series 373B 6 position plug with female sockets, 5.08mm pitch, screw-pressure clip termination, rated 16A and 300VAC (cULus).
Mfr Part #:

691373500006B

Available from 2 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Würth Elektronik WR-TBL Series 373B 6 position plug with female sockets, 5.08mm pitch, screw-pressure clip termination, rated 16A and 300VAC (cULus).
✓ Total Stock: 3,000 pcs
$ Price Range: $3.81 - $5.85

691373500006B Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
2,880 pcs
On Request
2880 pcs On Request 6 On Request On Request On Request On Request On Request
Chanetech ✓
Non-Authorised Inventory information
120 pcs
On Request
120 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691373500006B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Resistance
Current
Current Rating
Features
Halogen Free
Insulator Flammability Rating
Insulator Material
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Plug Wire Entry
Positions Per Level
SVHC Present
Screw Size
Termination Style
Torque
Type
Voltage
Wire Gauge or Range
View Similar Products (0)

691373500006B Description

Short technical summary and product information.

The Würth Elektronik 691373500006B is a 6-position pluggable terminal block plug from the WR-TBL Series 373B. It features female socket contacts with a 5.08mm pitch and a screw-pressure clip termination style for secure wire connections. The plug accepts solid or stranded wire from 24 to 12 AWG (0.205 to 3.31 mm²) and requires a wire strip length of 10 mm with a tightening torque of 0.45 Nm.



Rated for 16 A continuous current, the component is certified for 300 VAC (cULus) and 250 VAC (VDE) working voltage. Withstanding voltage is 2000 VAC (cULus) and 2200 VAC (VDE). The insulator is made of PA66 with a UL94 V-0 flammability rating, and the metal housing, terminal screw, and wire guard are steel with zinc plating.



Designed for free hanging (in-line) mounting with 180° wire entry, the plug includes retention latches on the non-wire side. Operating temperature range is -40°C to +105°C. The part is RoHS compliant and packaged in a box.

691373500006B Quick Information

Product Type: Terminal Block Plug
Series: 373B
Canonical Name: WR-TBL Series 373B 5.08mm Pitch 6 Position Plug, Female Sockets with Screw - Pressure Clip Termination
Subcategory: Headers, Plugs and Sockets

691373500006B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

691373500006B Estimated Pricing

Qty Low High
1+ $5.85 $5.85
10+ $5.24 $5.24
50+ $4.53 $4.53
100+ $4.05 $4.05
250+ $3.81 $3.81

Estimated market price range - modelled values for guidance only, not live distributor offers.

691373500006B Features

  • 6 position plug with 5.08mm pitch.
  • Screw-pressure clip wire termination.
  • Rated 16A and 300VAC (cULus).
  • Accepts 24 to 12 AWG wire.
  • PA66 insulator, UL94 V-0 rated.

691373500006B Applications

  • Pluggable cable connections in control systems.
  • Power distribution in industrial equipment.
  • Field wiring of sensors and actuators.
  • Internal wiring of panel and cabinet assemblies.

691373500006B FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this terminal block plug have?

This plug has 6 positions with 1 level.

What is the pitch of the 691373500006B?

The pitch is 5.08 mm (0.200 inches).

What is the current rating of this plug?

The current rating is 16 A (cULus and VDE).

What is the voltage rating for the 691373500006B?

Working voltage is 300 VAC (cULus) and 250 VAC (VDE).

What mounting type does this plug use?

Free hanging (in-line) mounting with 180° wire entry.

What wire gauge is compatible with this terminal block?

Accepts solid and stranded wire from 24 to 12 AWG (0.205 to 3.31 mm²).

What is the operating temperature range?

-40°C to +105°C.
