| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
70 pcs
|
70 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Material | |
| Contact Plating | |
| Contact Resistance | |
| Current | |
| Features | |
| Insulator Flammability Rating | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| SVHC Present | |
| Screw Size | |
| Termination Style | |
| Torque | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

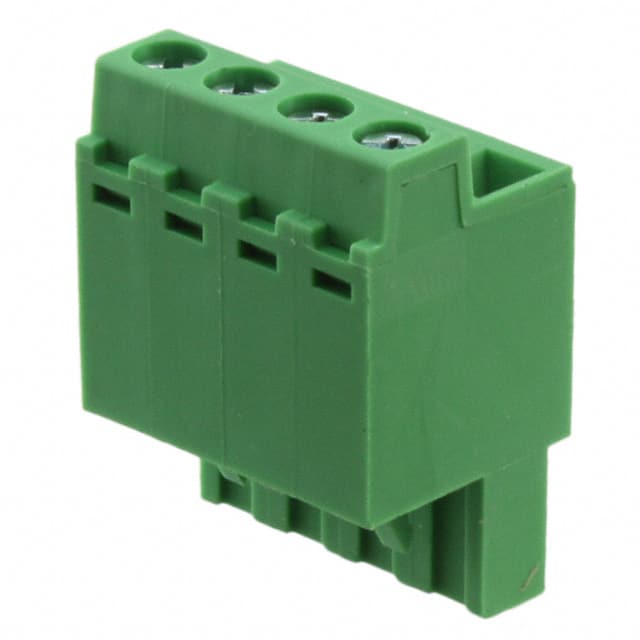

The Würth Elektronik 691373500004B is a 4-position terminal block plug from the WR-TBL Series 373B. It features a 5.08mm pitch and a free hanging (in-line) mounting style with screw pressure clip termination for secure wire connections. The plug accepts solid or stranded wire from 12 to 24 AWG (0.205–3.31 mm²) and requires a strip length of 10 mm.
Rated for 16A current and 300V (cULus) / 250V (VDE) working voltage, this plug offers a withstanding voltage of 2000V (cULus) and 2200V (VDE). Contact resistance is 20 mΩ maximum. The insulator is made of PA66 with UL94 V-0 flammability rating, and contacts are steel with zinc plating. Operating temperature ranges from -40°C to 105°C.
The plug is RoHS compliant and certified under cULus (E315414) and VDE (40038804). It is packaged in a box and is suitable for wire-to-board connections in industrial control, power distribution, and automation equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.60 | $4.60 |
| 10+ | $4.12 | $4.12 |
| 50+ | $3.56 | $3.56 |
| 100+ | $3.18 | $3.18 |
| 500+ | $2.99 | $2.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 4 positions.
The pitch is 5.08 mm.
The current rating is 16 A for both cULus and VDE.
Working voltage is 300 V AC (cULus) and 250 V AC (VDE).
Free hanging (in-line) mounting.
Solid and stranded wire from 12 to 24 AWG (0.205 to 3.31 mm²).
It is RoHS compliant, cULus approved (E315414), and VDE approved (40038804).
