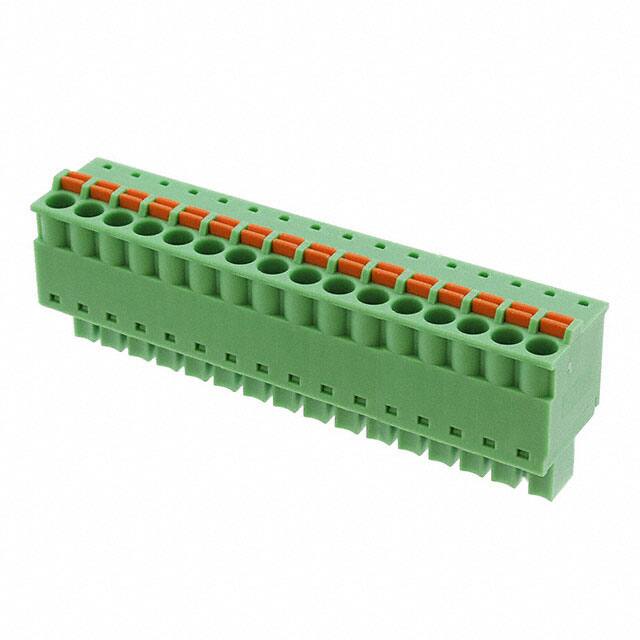

691368300016B Terminal block plug with 16 positions, 3.81mm pitch, screwless push-in spring termination. Rated for 300V and 8A, free hanging (in-line) mounting.
Mfr Part #:

691368300016B

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Terminal block plug with 16 positions, 3.81mm pitch, screwless push-in spring termination. Rated for 300V and 8A, free hanging (in-line) mounting.
✓ Total Stock: 9 pcs
$ Price Range: $7.73

691368300016B Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
9 pcs
On Request
9 pcs On Request 9 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691368300016B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Material
Contact Resistance
Current
Insulator Material
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Plug Wire Entry
Positions Per Level
SVHC Present
Termination Style
Type
Voltage
Wire Gauge or Range
Withstanding Voltage
View Similar Products (0)

691368300016B Description

Short technical summary and product information.

This is a 16-position terminal block plug from Würth Elektronik's 368B series. It features a 3.81mm pitch and screwless push-in spring (leg spring) termination for quick wire connection. The plug accepts 28-16 AWG solid or stranded wire with a 9mm strip length. Rated for 300V AC and 8A, with a withstanding voltage of 2.0kV. Contact resistance is 20mOhm max. The housing is made of PA66 (UL94 V-0) in green and orange, with stainless steel spring and phosphor bronze tin plated wire guard. Operating temperature range -40°C to 115°C. It is free hanging (in-line) mounting and packaged in a box. RoHS compliant and UL recognized (cULus E315414). Suitable for general electronics equipment.

691368300016B Quick Information

Product Type: Terminal Block Plug
Series: 368B
Canonical Name: Terminal Block Plug, Female Sockets, 16 Positions, 3.81mm Pitch, Screwless Push-In Spring, 300V, 8A
Subcategory: Terminal Block Plugs

691368300016B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

691368300016B Estimated Pricing

Qty Low High
5,040+ $7.73 $7.73

Estimated market price range - modelled values for guidance only, not live distributor offers.

691368300016B Features

  • 16 positions with 3.81mm pitch.
  • Screwless push-in spring termination.
  • Rated for 300V and 8A.
  • Free hanging (in-line) mounting.
  • UL94 V-0 flame retardant housing.

691368300016B Applications

  • Ideal for industrial control panels.
  • Used in building automation systems.
  • Suitable for signal and power distribution.
  • Common in PLC and I/O modules.

691368300016B FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this terminal block plug have?

16 positions.

What is the pitch of this connector?

3.81 mm.

What is the current rating?

8 A.

What is the voltage rating?

300 V.

What mounting type does this plug use?

Free hanging (in-line).

What wire gauge is accepted?

28-16 AWG (0.08-1.3 mm²).

What is the operating temperature range?

-40°C to 115°C.
