Mfr Part #:

691368300015B

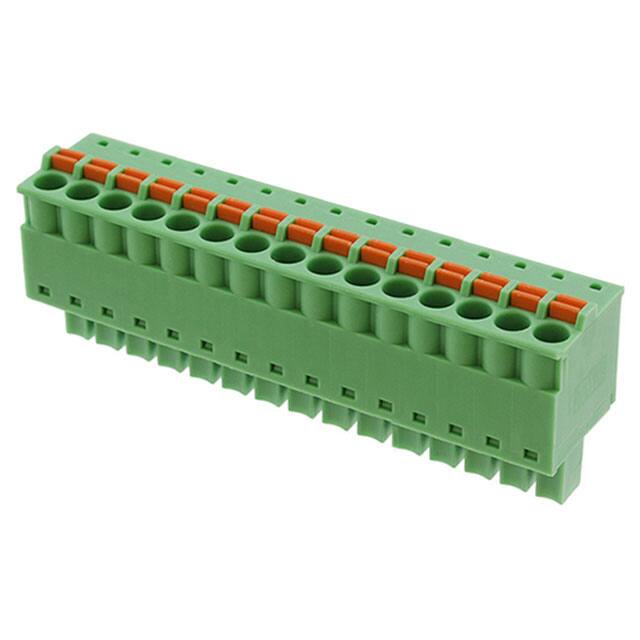

Terminal block plug with 15 positions, 3.81mm pitch, and screwless push-in spring termination. Rated for 8A at 300V, suitable for free hanging (in-line) mounting.

✓ Total Stock: 2,400 pcs

$ Price Range: $7.38

691368300015B Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Fe Components ✓ Non-Authorised Inventory information	2,400 pcs On Request	2400 pcs	On Request	5	On Request	On Request	On Request	On Request	On Request

691368300015B Description

Short technical summary and product information.

This terminal block plug from Würth Elektronik, part number 691368300015B, is a 15-position plug with a 3.81mm pitch. It features a screwless push-in spring termination mechanism, allowing for quick and reliable wire connections without the need for screws. The plug is designed for free hanging (in-line) mounting, making it suitable for direct cable connections.

The plug is rated for 8A current and 300V voltage, with a withstanding voltage of 2.0kV and contact resistance of 20 mOhm max. It accepts wire gauges from 28 to 16 AWG (0.081 to 1.31 mm²) with a strip length of 9mm. The operating temperature range is -40°C to 115°C.

The insulator is made of PA66 with a UL94 V-0 flammability rating, ensuring high flame resistance. The contact system uses a stainless steel spring and phosphor bronze tin-plated wire guard for reliable electrical contact. The plug is available in green and orange colors and is packaged in a box.

This component is RoHS compliant and lead-free, meeting environmental standards. It is suitable for use in general electronics equipment, industrial control, and automation applications.

691368300015B Quick Information

Product Type: Terminal Block Plug

Series: 368B

Canonical Name: Terminal Block Plug, Female Sockets, 15 Positions, 3.81mm Pitch, Screwless Push-In Spring, Free Hanging

Subcategory: Plugs

691368300015B Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Lead Free

691368300015B Estimated Pricing

Qty	Low	High
30+	$7.38	$7.38

Estimated market price range - modelled values for guidance only, not live distributor offers.

691368300015B Features

15 positions with 3.81mm pitch.
Screwless push-in spring termination.
Rated for 8A at 300V.
Free hanging (in-line) mounting.
UL94 V-0 flammability rated insulator.

691368300015B Applications

Suitable for general electronics equipment.
Ideal for industrial control wiring.
Used in power distribution and signal connections.

691368300015B FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does this terminal block plug have?

15 positions.

What is the pitch of this terminal block plug?

3.81mm (0.150 inches).

What is the current rating of this plug?

8 A (cULus rated).

What is the voltage rating?

300 V.

What is the mounting type for this plug?

Free Hanging (In-Line).

What termination style does this plug use?

Screwless - Leg Spring, Push-In Spring.

What wire gauge is compatible with this plug?

28-16 AWG (0.081-1.31 mm²) solid or stranded wire.

Category	Headers, Plugs and Sockets
Manufacturer Name	Würth Elektronik
Color	Green, Orange
Contact Material	Stainless Steel Spring, Phosphor Bronze Tin Plated Wire Guard
Contact Resistance	20 mOhm max
Current	8 A
Current Rating	8 A
Insulator Material	PA66
Lead Spacing	3.81 mm
Lead Style	Screwless - Leg Spring, Push-In Spring
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	15
Operating Temperature	-40°C ~ 115°C
Pitch	3.81mm (0.150")
Plug Wire Entry	180°
Positions Per Level	15
Termination Style	Screwless - Leg Spring, Push-In Spring
Type	Plug, Female Sockets
Voltage	300 V
Voltage Rating	300 V
Wire Gauge or Range	0.08-1.3mmﾂｲ
Withstanding Voltage	2.0 kV
