| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,800 pcs
|
4800 pcs | On Request | 5 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Material | |
| Contact Resistance | |
| Current | |
| Halogen Free | |
| Industrial Grade | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| SVHC Present | |
| Screw Size | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range | |
| Withstanding Voltage |

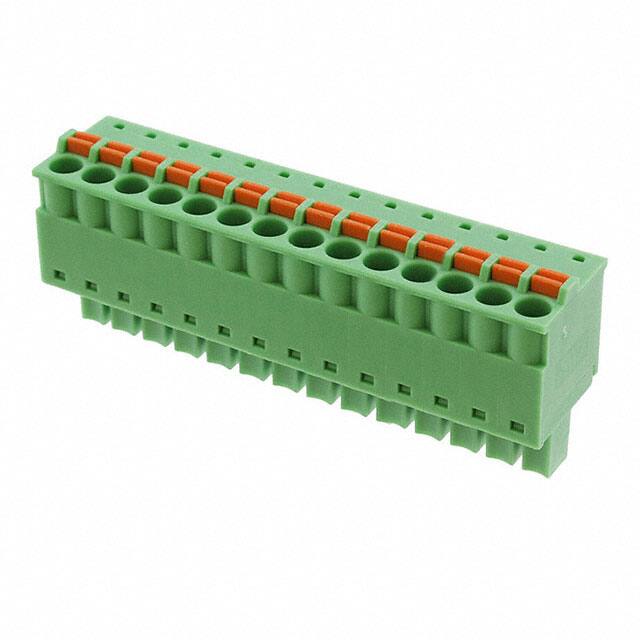

The Würth Elektronik 691368300014B is a 14-position plug terminal block from the WR-TBL Series 368B, featuring a 3.81mm pitch and a screwless leg spring, push-in spring termination style. This plug, with female sockets, is designed for free hanging (in-line) mounting and accepts solid or stranded wire from 28 to 16 AWG (0.081-1.31 mm²) with a 9mm strip length.
Electrical ratings include 8A current and 300VAC working voltage, with a maximum contact resistance of 20 mΩ and a withstanding voltage of 2.0 kV. The insulator is made of PA66 with a UL94 V-0 flammability rating, and the contact material is stainless steel. The wire guard is phosphor bronze, tin plated, and the metal spring is stainless strip steel. Operating temperature range is -40°C to +115°C.
The part is RoHS compliant and lead-free, packaged in a box. The 180° plug wire entry orientation simplifies wiring in space-constrained applications.
| Qty | Low | High |
|---|---|---|
| 50+ | $6.85 | $6.85 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 14 positions with 1 level and 14 positions per level.
The pitch is 3.81mm (0.150 inches).
Rated 8A at 300VAC.
Free hanging (in-line) mounting.
Accepts 28 to 16 AWG (0.081-1.31 mm²) solid or stranded wire with a 9mm strip length.
Yes, it is RoHS compliant and lead-free.
-40°C to +115°C.
