| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
37 pcs
|
37 pcs | On Request | 10 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Color | |
| Contact Material | |
| Contact Resistance | |
| Current | |
| Current Rating | |
| Industrial Grade | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Screw Size | |
| Termination Style | |
| Type | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Gauge or Range | |
| Withstanding Voltage |

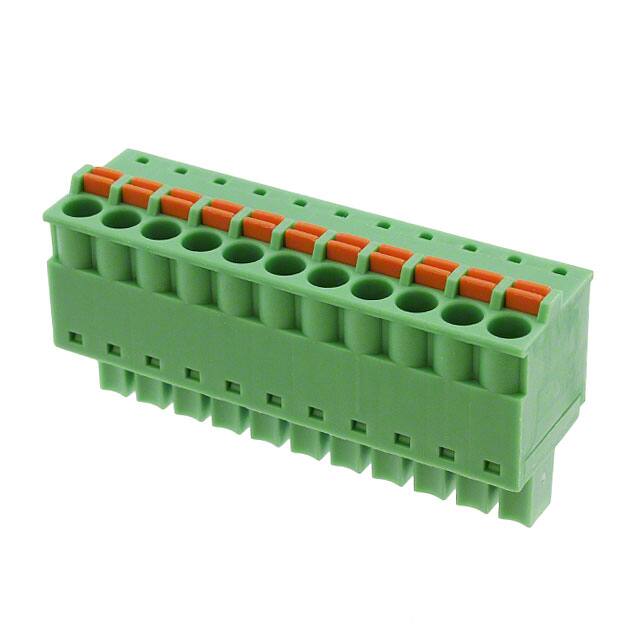

This plug connector is part of Würth Elektronik's WR-TBL 368B series. It features 11 positions with a 3.81mm pitch and female socket contacts. The plug is designed for free hanging (in-line) mounting and uses a screwless push-in spring termination for quick wire connection.
Electrical ratings include 8A current and 300VAC voltage, with a withstanding voltage of 2.0kV and contact resistance of 20mΩ max. It accepts solid or stranded wire from 28 to 16 AWG (0.081-1.31 mm²) with a strip length of 9mm.
The insulator is made of PA66 with UL94 V-0 flammability rating, and contacts are stainless steel. Operating temperature range is -40°C to 115°C. The plug is RoHS and lead-free compliant. Packaging is in boxes.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.08 | $8.08 |
| 10+ | $7.24 | $7.24 |
| 50+ | $6.25 | $6.25 |
| 100+ | $5.59 | $5.59 |
| 250+ | $5.26 | $5.26 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
11 positions.
3.81 mm (0.150 inches).
8 A.
300 VAC.
Free hanging (in-line).
28-16 AWG (0.081-1.31 mm²) solid or stranded.
Screwless push-in spring (leg spring).
