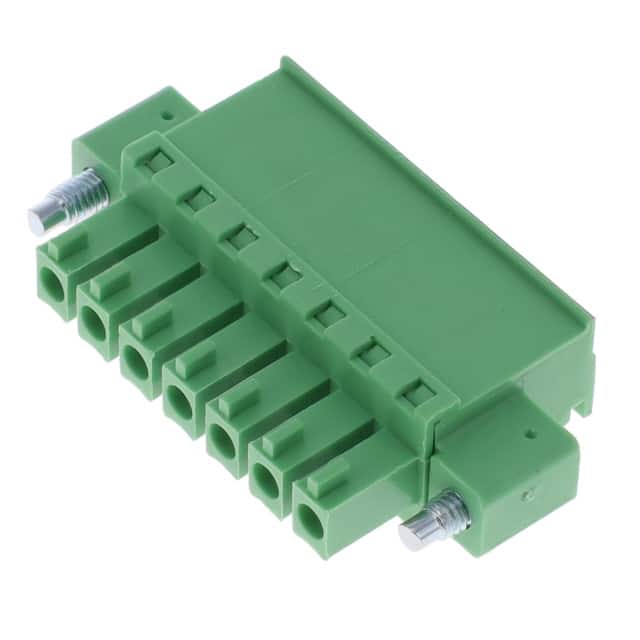

691367310007 This 7-position terminal block plug from Würth Elektronik features a 3.81mm pitch with female sockets and screw termination. It is designed for free hanging (in-line) mounting with a 90° wire entry.
Mfr Part #:

691367310007

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
This 7-position terminal block plug from Würth Elektronik features a 3.81mm pitch with female sockets and screw termination. It is designed for free hanging (in-line) mounting with a 90° wire entry.
✓ Total Stock: 10 pcs
$ Price Range: $5.01 - $7.91

691367310007 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691367310007 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Resistance
Current
Features
Housing Material
Insulator Material
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Plug Wire Entry
Positions Per Level
Screw Size
Termination Style
Torque
Type
Voltage
Wire Gauge or Range
View Similar Products (0)

691367310007 Description

Short technical summary and product information.

The Würth Elektronik 691367310007 is a 7-position terminal block plug from the WR-TBL series 3673. It uses a 3.81mm pitch and features female sockets with screw termination using a leaf spring and wire guard mechanism. The plug is designed for free hanging (in-line) mounting with a 90° wire entry angle, making it suitable for compact wiring applications. Electrical ratings include 8A current (UL) and 300V working voltage (UL/VDE), with a withstanding voltage of 1.6kV (UL) and 2.5kV (VDE). Contact resistance is maximum 20mOhm. The insulator is made of PA66 with UL94-V0 flammability rating, and the housing is brass (CuZn). The operating temperature range is -40°C to 105°C. It accepts 28-16 AWG solid or stranded wire with a wire strip length of 6-7mm and requires a torque of 0.2 Nm. The plug is packaged in a box. It is RoHS compliant and lead-free.

691367310007 Quick Information

Product Type: Terminal Block Plug
Series: 3673
Canonical Name: Terminal Block, Plug, Female Sockets, 7 Position, 3.81mm Pitch, Free Hanging (In-Line), Screw Termination
Subcategory: Plug, Female Sockets

691367310007 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant
Lead Free: Lead free

691367310007 Estimated Pricing

Qty Low High
1+ $7.91 $7.91
10+ $7.19 $7.19
50+ $6.75 $6.75
100+ $6.17 $6.17
360+ $5.01 $5.01

Estimated market price range - modelled values for guidance only, not live distributor offers.

691367310007 Features

  • 7-position plug with 3.81mm pitch.
  • Screw termination with leaf spring and wire guard.
  • Rated for 8A current and 300V voltage.
  • Free hanging (in-line) mounting with 90° wire entry.
  • RoHS compliant and lead-free.

691367310007 Applications

  • Ideal for industrial control panel wiring.
  • Used in building automation systems.
  • Suitable for power distribution and signal connections.
  • For use in compact, space-constrained installations.

691367310007 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 691367310007 terminal block have?

It has 7 positions.

What is the pitch of this terminal block plug?

The pitch is 3.81 mm.

What is the current rating of the Würth Elektronik 691367310007?

The current rating is 8 A (UL) and 10 A (VDE).

What is the voltage rating of this terminal block?

The working voltage is 300 V (UL and VDE).

What mounting type does this plug use?

It is designed for free hanging (in-line) mounting.

What wire gauge is compatible with this terminal block?

It accepts solid and stranded wire from 28 to 16 AWG.

What is the operating temperature range?

The operating temperature range is -40°C to 105°C.
