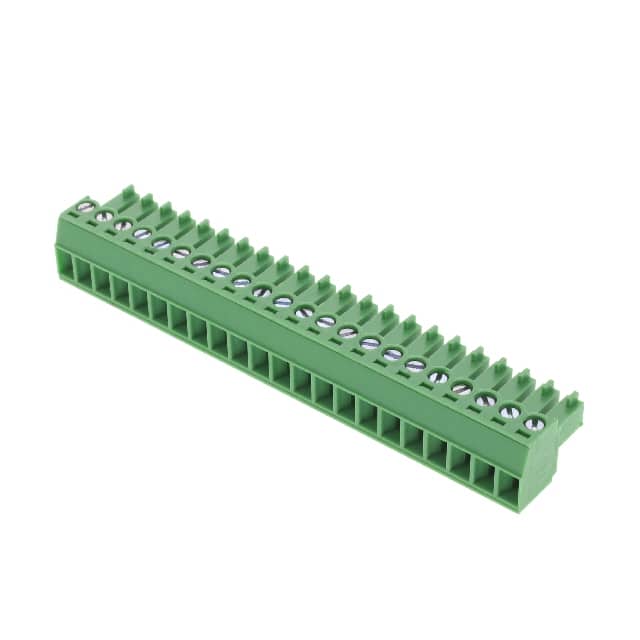

The 691361300022 is a 22-position terminal block plug from Würth Elektronik, part of the WR-TBL 361 series. It uses a 3.81mm pitch and screw leaf-spring, wire guard termination. The plug has female sockets and is designed for free hanging (in-line) installation with a 180° wire entry.
With a current rating of 10A (cULus) or 10.5A (VDE) and a working voltage of 300VAC, it is suitable for signal and power connections. Withstanding voltage is 1.6kV (cULus) or 2.5kV (VDE), and contact resistance is 20mΩ maximum.
The insulator is PA 66 A with a UL94-V0 flammability rating, and the metal housing is brass (CuZn) with a tin-plated wire guard. It accepts 26-16 AWG solid or stranded wire (0.129-1.31mm²) with a 6-7mm strip length and M2 screws with a recommended torque of 0.34 N·m. Operating temperature range is -40°C to 105°C.
The component is supplied in a box and is RoHS compliant and lead-free. The green insulator and 3.81mm pitch are part of the WR-TBL 361 series design.
| Qty | Low | High |
|---|---|---|
| 1+ | $15.38 | $15.38 |
| 10+ | $14.24 | $14.24 |
| 50+ | $13.56 | $13.56 |
| 100+ | $12.65 | $12.65 |
| 400+ | $10.82 | $10.82 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 22 positions (22 positions per level, 1 level).
The pitch is 3.81mm.
The current rating is 10A (cULus) and 10.5A (VDE).
Working voltage is 300VAC for both cULus and VDE.
It is free hanging (in-line).
It accepts 26-16 AWG solid or stranded wire (0.129-1.31mm²).
It operates from -40°C to 105°C.
