| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Color | |
| Contact Material | |
| Contact Plating | |
| Contact Resistance | |
| Current | |
| Industrial Grade | |
| Insulator Flammability Rating | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| SVHC Present | |
| Termination Style | |
| Torque | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

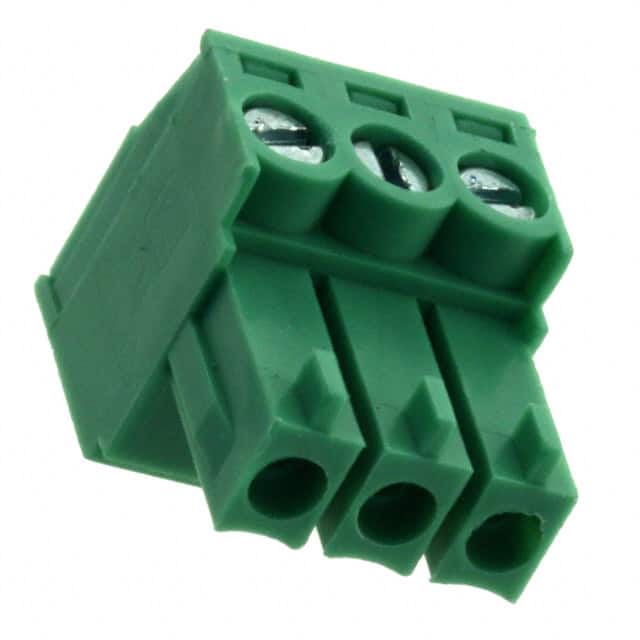

This is a 3-position plug from Würth Elektronik's WR-TBL Series 3611, part of the terminal block family. It features a 3.5mm pitch and is designed for free hanging (in-line) mounting. The plug accepts female sockets and uses a screw termination with leaf spring and wire guard for secure wire connections.
Electrical and mechanical specs: Rated current 10A (cULus) and 10.5A (VDE) at 300VAC working voltage. Withstanding voltage is 1.6kV (cULus) and 2.2kV (VDE). Contact resistance is 20mΩ max. Operating temperature range -40°C to 105°C. Accepts solid and stranded wire from 26 to 16 AWG (0.129-1.31 mm²) with a stripping length of 6-7mm. Torque specification is 0.34 Nm.
Materials and compliance: Insulator is PA66 with UL94 V-0 flammability rating, color green. Contacts are phosphor bronze with tin over nickel plating. Cage is brass, terminal screw is steel with zinc plating, wire guard is phosphor bronze with tin plating. The component is RoHS compliant and lead free. Packaging is in boxes.
Application context: Suitable for general electronics equipment requiring reliable pluggable connections. The vertical cable entry design (180°) facilitates straightforward wiring. The WR-TBL series offers a range of pin counts; this 3-position variant is ideal for compact power or signal distribution.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.81 | $1.81 |
| 10+ | $1.62 | $1.62 |
| 50+ | $1.40 | $1.40 |
| 100+ | $1.25 | $1.25 |
| 200+ | $1.18 | $1.18 |
| 450+ | $1.11 | $1.11 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions.
3.50mm.
10A (cULus) and 10.5A (VDE).
300VAC working voltage.
Free hanging (in-line).
26 to 16 AWG solid and stranded wire.
-40°C to 105°C.
