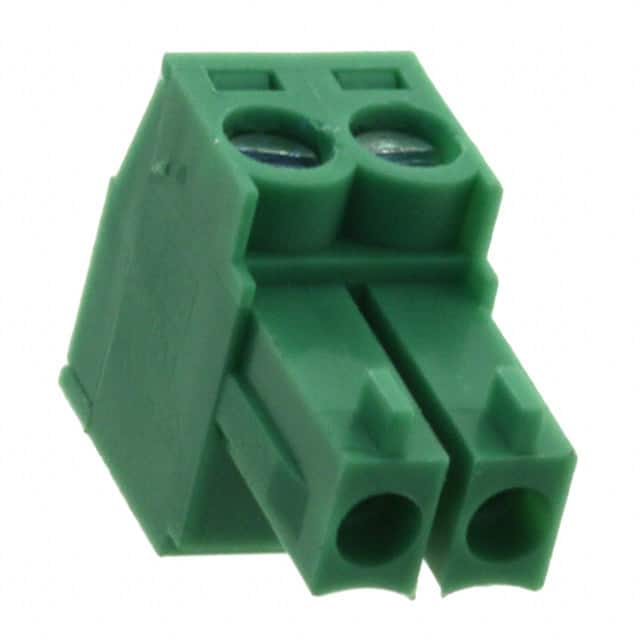

691361100002 WR-TBL Series 3611 3.50mm vertical plug with 2 positions, screw termination, rated 10A/300V AC. Suitable for 26-16 AWG wires.
Mfr Part #:

691361100002

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
WR-TBL Series 3611 3.50mm vertical plug with 2 positions, screw termination, rated 10A/300V AC. Suitable for 26-16 AWG wires.
✓ Total Stock: 108 pcs
$ Price Range: $0.85 - $1.39

691361100002 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
108 pcs
On Request
108 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691361100002 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Automotive Grade
Color
Contact Material
Contact Plating
Contact Resistance
Current
Insulator Color
Insulator Material
Lead Spacing
Lead Style
Medical Grade
Military Grade
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Operating Temperature Range
Pitch
Plug Wire Entry
Positions Per Level
Screw Size
Termination Style
Torque
Type
Voltage
Wire Gauge or Range
View Similar Products (0)

691361100002 Description

Short technical summary and product information.

The Würth Elektronik 691361100002 is a WR-TBL Series 3611 3.50mm pitch vertical plug designed for cable-to-board or cable-to-cable connections. It features 2 positions with screw termination and a wire guard for secure conductor retention.



Electrical ratings include 10A (cULus) and 10.5A (VDE) current capacity with a working voltage of 300V AC. The plug accepts solid or stranded wire from 26 to 16 AWG (0.129-1.31 mm²) and requires a strip length of 6-7 mm.



Constructed with a PA66 insulator (UL94 V-0 flammability rating) in green, phosphor bronze contacts with tin over nickel plating, and a brass metal housing. The terminal screw is steel with zinc plating. Operating temperature range is -40°C to +105°C.



Mounting type is free hanging (in-line) with 180° wire entry. Packaging is in boxes. The part is RoHS3 compliant and REACH unaffected.

691361100002 Quick Information

Product Type: Terminal Block Plug
Series: 3611
Canonical Name: WR-TBL Series 3611 3.50mm Vertical Plug, 2 Positions, Screw Termination
Subcategory: Pluggable Terminal Blocks

691361100002 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

691361100002 Estimated Pricing

Qty Low High
1+ $1.39 $1.39
10+ $1.25 $1.25
50+ $1.08 $1.08
100+ $0.96 $0.96
250+ $0.91 $0.91
650+ $0.85 $0.85

Estimated market price range - modelled values for guidance only, not live distributor offers.

691361100002 Features

  • 2 positions with 3.50mm pitch.
  • Screw termination with wire guard.
  • Rated 10A (cULus) and 10.5A (VDE).
  • 300V AC working voltage.
  • Free hanging in-line mounting.

691361100002 Applications

  • Used in industrial control wiring.
  • Suitable for power distribution.
  • Ideal for sensor and actuator connections.
  • Common in building automation systems.
  • For cable-to-cable or cable-to-board connections.

691361100002 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 691361100002 have?

It has 2 positions.

What is the pitch of this terminal block plug?

The pitch is 3.50 mm.

What is the current rating of the 691361100002?

10 A (cULus) and 10.5 A (VDE).

What is the voltage rating?

300 V AC working voltage.

What mounting type does this plug use?

Free hanging (in-line) with 180° wire entry.

What wire gauge is compatible?

26 to 16 AWG solid or stranded wire (0.129-1.31 mm²).

What is the operating temperature range?

-40°C to +105°C.
