691359340007 Würth Elektronik WR-TBL Series 3593 IDC plug with 7 female socket positions, 3.81mm pitch, free hanging mounting, rated 5A at 300V.
Mfr Part #:

691359340007

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Würth Elektronik WR-TBL Series 3593 IDC plug with 7 female socket positions, 3.81mm pitch, free hanging mounting, rated 5A at 300V.
✓ Total Stock: 7 pcs
$ Price Range: $4.96

691359340007 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
7 pcs
On Request
7 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691359340007 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Automotive Grade
Color
Contact Material
Contact Mating Finish
Contact Resistance
Contact Type
Current
Current Rating
Features
Insulator Material
Lead Spacing
Lead Style
Medical Grade
Military Grade
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Plug Wire Entry
Positions Per Level
Termination Style
Type
Voltage
Wire Gauge or Range
Withstanding Voltage
Working Voltage
View Similar Products (0)

691359340007 Description

Short technical summary and product information.

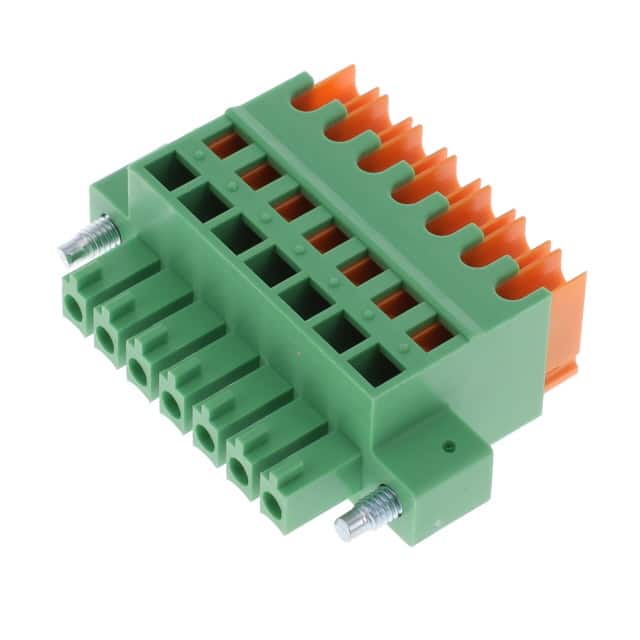

The Würth Elektronik 691359340007 is a 7-position IDC plug from the WR-TBL Series 3593. It features female sockets with a 3.81mm pitch and a 90° wire entry for horizontal connection. The plug is designed for free hanging (in-line) mounting and includes a mating flange for secure connection to a matching header.



Rated at 5A and 300V with a withstanding voltage of 1.6kV, this plug is suitable for signal and low-power applications. The insulator is made of PA 66 with a UL94 V-0 flammability rating, and contacts are tin-plated copper alloy. It accepts 22-20 AWG solid or stranded wire (0.33-0.52mm²).



The plug is packaged in a box and is RoHS compliant and lead-free. It is intended for general electronics equipment and should be evaluated for use in high-reliability applications.

691359340007 Quick Information

Product Type: Terminal Block Plug
Series: 3593
Canonical Name: 3.81mm Pitch IDC Plug, Female Sockets, 7 Positions, Free Hanging
Subcategory: IDC Plug

691359340007 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

691359340007 Estimated Pricing

Qty Low High
60+ $4.96 $4.96

Estimated market price range - modelled values for guidance only, not live distributor offers.

691359340007 Features

  • 7-position IDC plug with 3.81mm pitch.
  • Rated for 5A at 300V working voltage.
  • Free hanging mounting with 90° wire entry.
  • UL94 V-0 rated PA 66 insulator.
  • Accepts 22-20 AWG solid or stranded wire.

691359340007 Applications

  • Suitable for general electronics interconnection.
  • Ideal for signal and low-power distribution.
  • Used in control and instrumentation panels.
  • Works with matching WR-TBL headers.

691359340007 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this plug have?

7 positions in a single level.

What is the pitch of this terminal block plug?

3.81mm (0.150 inches).

What is the current and voltage rating?

5A current rating and 300V working voltage.

What mounting type does this plug use?

Free hanging (in-line) mounting.

What wire sizes does it accept?

22-20 AWG solid or stranded wire (0.33-0.52mm²).

Is this component RoHS compliant?

Yes, it is RoHS3 compliant and lead-free.

What is the operating temperature range?

-40°C to 115°C.
