Mfr Part #:

691359340005

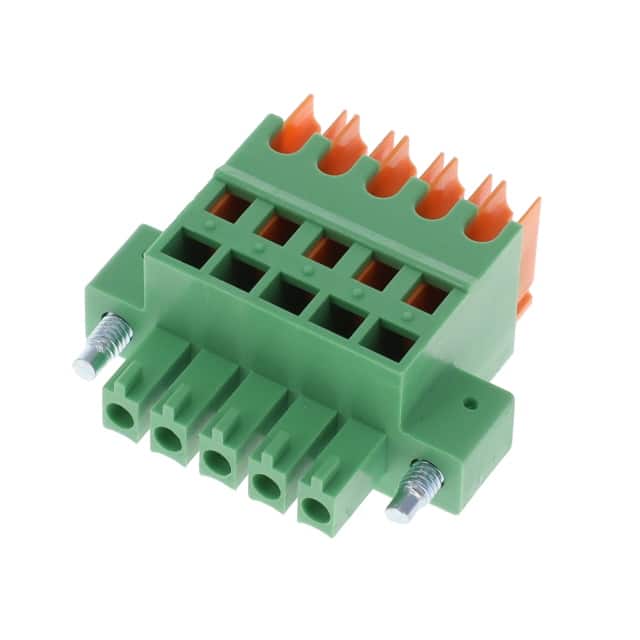

5-position 3.81mm pitch IDC plug, female sockets, horizontal wire entry, free hanging with mating flange. Rated 5A at 300V.

✓ Total Stock: 42 pcs

$ Price Range: $3.45

691359340005 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Bristol Electronics ✓ Non-Authorised Inventory information	42 pcs On Request	42 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

691359340005 Description

Short technical summary and product information.

The Würth Elektronik 691359340005 is a 5-position pluggable terminal block plug from the WR-TBL Series 3593. This IDC (Insulation Displacement Connector) plug features female sockets arranged on a 3.81mm pitch with a single level. The termination style is IDC, accepting solid or stranded wire from 20 to 22 AWG (0.326 to 0.518 mm²). The housing is free hanging (in-line) with a 90° horizontal wire entry, designed for cable-to-board applications.

Electrically rated at 5A current and 300V (AC) working voltage, the connector withstands 1.6kV and has a maximum contact resistance of 20 mOhm. The insulator is PA66 with UL94 V-0 flammability rating. Contacts are copper alloy with tin plating, stamped construction, and the mating flanges include steel M2.5 screws. The operating temperature range is -40°C to 115°C.

The connector is packaged in a box. It is RoHS compliant and lead-free. Suitable for use in general electronic equipment; for safety-critical applications, prior written approval from Würth Elektronik is required.

691359340005 Quick Information

Product Type: Terminal Block Plug

Series: 3593

Canonical Name: WR-TBL Series 3593 3.81mm 5-Position IDC Plug, Female Sockets, Free Hanging

Subcategory: IDC Connector

691359340005 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Lead Free

691359340005 Estimated Pricing

Qty	Low	High
75+	$3.45	$3.45

Estimated market price range - modelled values for guidance only, not live distributor offers.

691359340005 Features

5-position 3.81mm pitch IDC plug.
Rated for 5A at 300V AC operation.
Free hanging with 90° wire entry.
Accepts 20-22 AWG solid or stranded wire.
Mating flange with steel M2.5 screws.

691359340005 Applications

Suitable for cable-to-board interconnection.
Ideal for industrial control panel wiring.
Used in general electronics equipment assemblies.
Provides reliable IDC termination in tight spaces.

691359340005 FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does this connector have?

5 positions in a single level.

What is the pitch of this terminal block?

3.81mm (0.150 inches).

What is the current and voltage rating?

5A current and 300V AC working voltage.

What mounting style does this part use?

Free hanging (in-line) with 90° horizontal wire entry.

What wire gauge does the IDC termination accept?

20 to 22 AWG (0.326 to 0.518 mm²) for both solid and stranded wire.

Is this component RoHS compliant?

Yes, it is RoHS compliant and lead-free.

What is the operating temperature range?

-40°C to 115°C.

Category	Headers, Plugs and Sockets
Manufacturer Name	Würth Elektronik
Color	Green
Contact Material	Copper Alloy
Contact Mating Finish	Tin
Contact Resistance	20 mOhm max
Contact Type	Stamped
Current	5 A
Current Rating	5 A
Features	Mating Flange
Insulator Material	PA66
Lead Spacing	3.81 mm
Lead Style	Idc
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	5
Operating Temperature	-40°C ~ 115°C
Operating Temperature Range	-40°C ~ 115°C
Pitch	3.81mm (0.150")
Plug Wire Entry	90°
Positions Per Level	5
Termination Style	IDC
Type	Plug, Female Sockets
Voltage	300 V
Voltage Rating	300 V
Wire Gauge	20-22 AWG (0.326-0.518 mm²)
Wire Gauge or Range	0.33-0.52mmﾂｲ
Withstanding Voltage	1.6 kV
