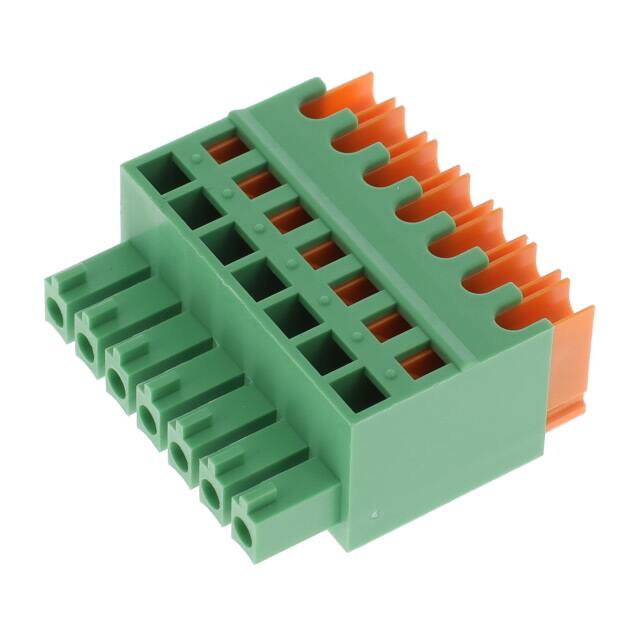

691358310007 This is a 7-position, 3.81mm pitch terminal block plug from Würth Elektronik's WR-TBL Series 3583. It features IDC termination for 20-22 AWG solid or stranded wire and is rated for 5A at 300V AC.
Mfr Part #:

691358310007

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
This is a 7-position, 3.81mm pitch terminal block plug from Würth Elektronik's WR-TBL Series 3583. It features IDC termination for 20-22 AWG solid or stranded wire and is rated for 5A at 300V AC.
✓ Total Stock: 10 pcs
$ Price Range: $4.85

691358310007 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691358310007 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Material
Color
Contact Material
Contact Mating Finish
Contact Resistance
Contact Type
Current
Insulator Material
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Plug Wire Entry
Positions Per Level
Rated Current
Termination Style
Type
Voltage
Wire Gauge or Range
Withstanding Voltage
Working Voltage
View Similar Products (0)

691358310007 Description

Short technical summary and product information.

The 691358310007 is a 7-position terminal block plug from Würth Elektronik's WR-TBL Series 3583. It has a 3.81 mm pitch and uses IDC (Insulation Displacement Connection) termination, making it suitable for quick and reliable wire-to-board connections without stripping. The plug accepts 20 to 22 AWG solid or stranded wire (0.33-0.52 mm²).



Electrically, it is rated for 5 A continuous current and 300 V AC working voltage, with a withstanding voltage of 1600 V AC and contact resistance of 20 mΩ. The operating temperature range is -40 °C to +115 °C.



Mechanically, the plug is designed for free hanging (in-line) mounting with a 90° wire entry. The green insulator is made of PA66 with UL94 V-0 flammability rating, and the actuator is orange PA66. Contact material is copper alloy with tin plating.



This component is cULus certified (E315414) and RoHS/REACH compliant. It is packaged in a box and is part of an active production series with an expected lifetime greater than 10 years.

691358310007 Quick Information

Product Type: Terminal Block Plug
Series: 3583
Canonical Name: WR-TBL Series 3583 3.81 mm Horizontal IDC Plug, 7 Positions
Subcategory: Pluggable Connector

691358310007 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Compliant

691358310007 Estimated Pricing

Qty Low High
90+ $4.85 $4.85

Estimated market price range - modelled values for guidance only, not live distributor offers.

691358310007 Features

  • 7 positions with 3.81 mm pitch.
  • IDC termination for 20-22 AWG wire.
  • Rated for 5 A at 300 V AC.
  • Free hanging (in-line) mounting.
  • Green PA66 insulator with UL94 V-0 rating.

691358310007 Applications

  • Used in industrial control panel wiring.
  • Suitable for signal and power distribution.
  • Ideal for discrete wire to board connections.
  • Common in automation and instrumentation systems.

691358310007 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of this terminal block plug?

3.81 mm.

How many positions does it have?

7 positions.

What is the current rating?

5 A.

What is the voltage rating?

300 V AC working voltage.

What type of mounting does it support?

Free hanging (in-line).

What wire gauge is compatible with this plug?

20 to 22 AWG solid or stranded wire.

What is the operating temperature range?

-40 °C to +115 °C.
