| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
17 pcs
|
17 pcs | On Request | 17 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Material | |
| Contact Mating Finish | |
| Contact Resistance | |
| Current | |
| Current Rating | |
| Features | |
| Flammability Rating | |
| Halogen Free | |
| Header Orientation | |
| Industrial Grade | |
| Insulation Resistance | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Plating | |
| Positions Per Level | |
| SVHC Present | |
| Screw Size | |
| Termination Style | |
| Type | |
| Voltage | |
| Withstanding Voltage | |
| Working Voltage |

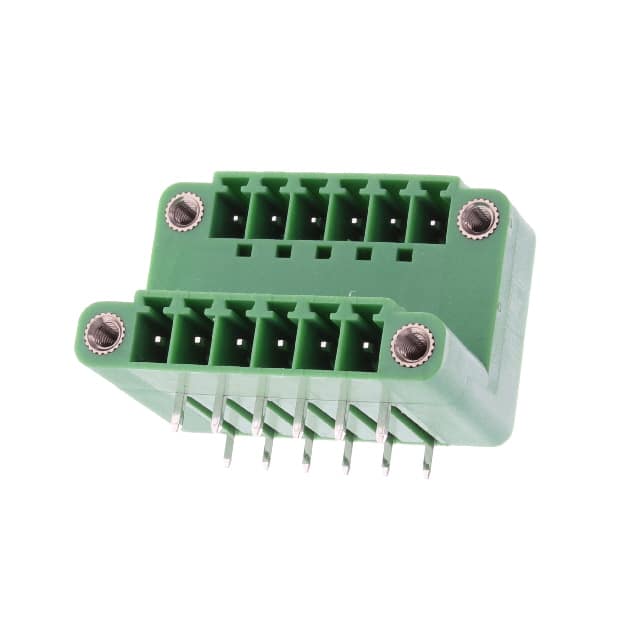

The Würth Elektronik 691357310012B is a double-level, right-angle header from the 357B series, designed for terminal block applications. It features 12 positions arranged in two levels of 6, with a 3.81mm pitch. The header is shrouded on all four sides and includes a mating flange for secure connection to matching plug connectors.
Rated for 10A current and 300VAC working voltage, this component is suitable for power and signal distribution in industrial control, automation, and instrumentation systems. It offers a withstand voltage of 2000V AC, insulation resistance greater than 2000 MΩ, and contact resistance of 20 mΩ maximum.
Constructed with a PA 66 insulator (UL94-V0 flammability rated) and tin-plated brass contacts, the header is designed for through-hole mounting and wave soldering. The operating temperature range is -40°C to 105°C. The green color and M2.5 screw size are standard for this series.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.47 | $8.47 |
| 10+ | $7.78 | $7.78 |
| 50+ | $7.38 | $7.38 |
| 100+ | $6.83 | $6.83 |
| 400+ | $5.74 | $5.74 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 12 positions arranged in 2 levels of 6 positions per level.
The pitch is 3.81mm (0.150 inches).
The current rating is 10 A.
The working voltage is 300 VAC, and the withstanding voltage is 2000 V AC.
It is through-hole mounting with solder termination.
The operating temperature range is -40°C to 105°C.
