| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
780 pcs
|
780 pcs | On Request | 8 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Features | |
| Header Orientation | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage |

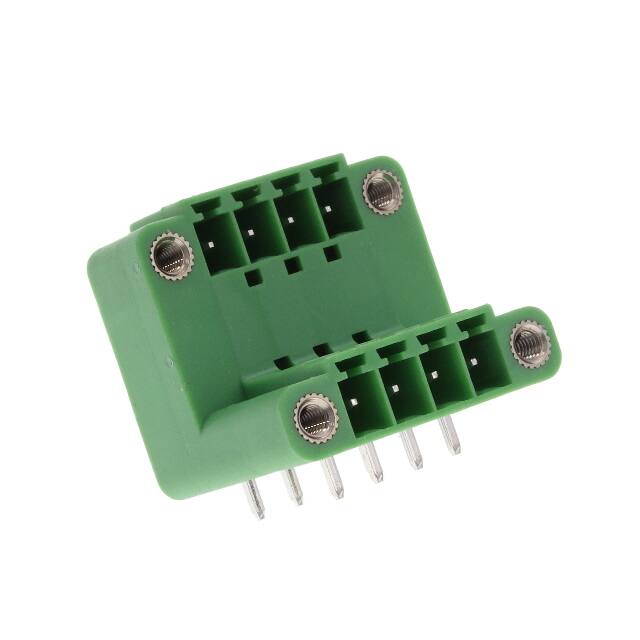

The Würth Elektronik 691357310008B is a double level horizontal male PCB header from the WR-TBL 357B series. It features a 3.81mm pitch and 8 positions arranged as 4 positions per level across 2 levels. The header is right angle (90°) orientation with a shrouded design and includes a mating flange for secure connection.
Electrical ratings include a current rating of 10A and a working voltage of 300VAC. The insulation resistance is greater than 2000 MOhm and contact resistance is 20 mOhm maximum. The header is rated for operating temperatures from -40°C to 105°C.
The insulator is made of PA 66 with a UL94-V0 flammability rating and is light green in color. Contacts are brass (CuZn) with tin plating. The termination style is through hole solder. The header is RoHS compliant and lead free.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.85 | $6.85 |
| 10+ | $6.30 | $6.30 |
| 50+ | $5.97 | $5.97 |
| 100+ | $5.53 | $5.53 |
| 360+ | $4.65 | $4.65 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 3.81mm (0.150 inches).
It has 8 positions, arranged as 4 positions per level across 2 levels.
The current rating is 10A and the working voltage is 300VAC.
Through hole, right angle (90°) orientation.
-40°C to 105°C.
Yes, it is RoHS compliant and lead free.
UL94-V0.
