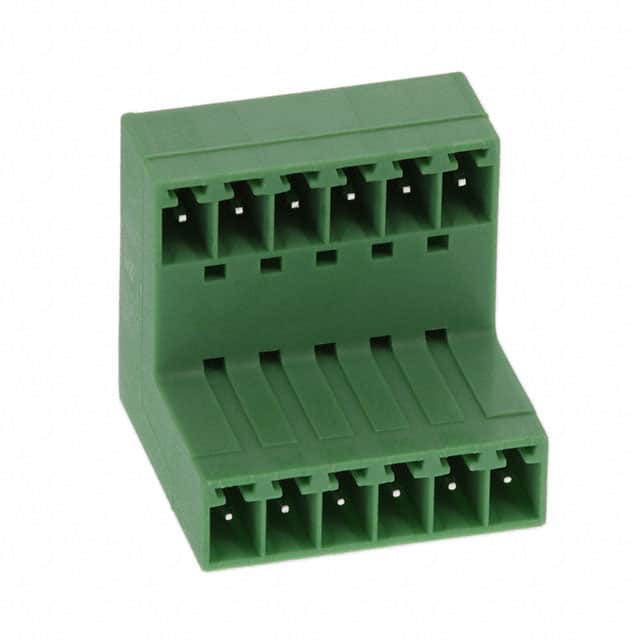

691356300012B Würth Elektronik WR-TBL 356B series double level vertical male PCB header with 3.81mm pitch, 12 positions (6 per level), rated 10A and 300V. Through hole solder termination with tin plated brass contacts.
Mfr Part #:

691356300012B

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Würth Elektronik WR-TBL 356B series double level vertical male PCB header with 3.81mm pitch, 12 positions (6 per level), rated 10A and 300V. Through hole solder termination with tin plated brass contacts.
✓ Total Stock: 10 pcs
$ Price Range: $4.03 - $6.36

691356300012B Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691356300012B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Material
Contact Mating Finish
Contact Plating
Contact Resistance
Current
Current Rating
Halogen Free
Header Orientation
Industrial Grade
Insulation Material
Insulation Resistance
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Positions Per Level
SVHC Present
Termination Style
Type
Voltage
Voltage Rating
Withstanding Voltage
View Similar Products (0)

691356300012B Description

Short technical summary and product information.

The Würth Elektronik 691356300012B is a WR-TBL Series 356B double level vertical male PCB header designed for terminal block interconnect applications. It features a 3.81mm pitch with 12 total positions arranged as 6 positions per level in a shrouded (4 side) header configuration.



Electrical ratings include a current rating of 10A and a voltage rating of 300V AC. The header offers robust electrical performance with insulation resistance greater than 2000 MΩ, contact resistance of 20 mΩ maximum, and a withstanding voltage of 2000V AC. The operating temperature range is -40°C to 105°C.



Mechanically, the header uses a green PA66 insulator with UL94 V-0 flammability rating. Contacts are made of brass with tin plating. The component is through hole mounted with solder termination and is compatible with JEDEC lead free wave soldering processes. Packaging is in a box with a length of 23.65 mm for the 12-position variant.

691356300012B Quick Information

Product Type: Terminal Block Header
Series: 356B
Canonical Name: WR-TBL Series 356B 3.81mm Double Level Vertical Male PCB Header, 12 Positions (6 per level), Through Hole, Tin Plated
Subcategory: Double Level Vertical Header

691356300012B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 - Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

691356300012B Estimated Pricing

Qty Low High
1+ $6.36 $6.36
10+ $5.78 $5.78
50+ $5.42 $5.42
100+ $4.96 $4.96
350+ $4.03 $4.03

Estimated market price range - modelled values for guidance only, not live distributor offers.

691356300012B Features

  • Double level vertical male PCB header.
  • 3.81mm pitch with 12 positions total.
  • Rated for 10A and 300V AC operation.
  • Through hole solder termination style.
  • UL recognized with flammability rating UL94 V-0.

691356300012B Applications

  • Used in industrial control and automation systems.
  • Suitable for power supply and distribution boards.
  • Ideal for building automation and HVAC equipment.
  • Applicable in lighting control and LED drivers.
  • Used in instrumentation and measurement devices.

691356300012B FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the Würth Elektronik 691356300012B header?

The pitch is 3.81 mm.

How many positions does the 691356300012B have?

It has 12 positions total, arranged as 6 positions per level across 2 levels.

What is the current and voltage rating of this header?

The current rating is 10 A and the voltage rating is 300 V AC.

What is the mounting type for the 691356300012B?

It is a through hole mounting header with solder termination.

What is the operating temperature range?

The operating temperature range is -40°C to 105°C.

Is the 691356300012B RoHS compliant?

Yes, it is RoHS compliant and lead free as verified in the datasheet.

What is the insulation material and flammability rating?

The insulator is made of PA66 with a flammability rating of UL94 V-0.
