| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
58 pcs
|
58 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
23 pcs
|
23 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Color | |
| Contact Material | |
| Contact Mating Finish | |
| Contact Resistance | |
| Current | |
| Current Rating | |
| Header Orientation | |
| Industrial Grade | |
| Insulation Resistance | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Plating | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Withstanding Voltage | |
| Working Voltage |

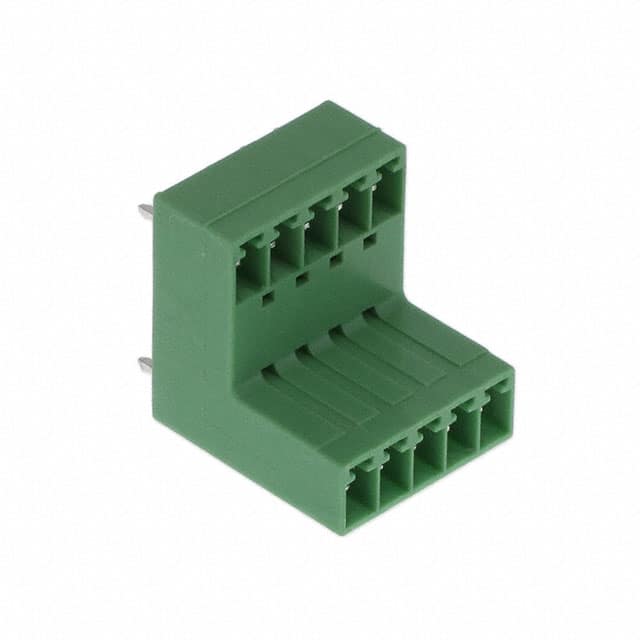

The Würth Elektronik 691356300010B is a WR-TBL Series 356B double level vertical male PCB header designed for terminal block interconnect applications. This shrouded (4 side) header provides 10 positions arranged in two levels of 5 positions each, with a 3.81mm pitch. It features a through hole mounting style with solder termination, making it suitable for wave soldering processes per JEDEC lead free standards.
Electrical ratings include a current rating of 10A and working voltage of 300VAC, with a withstanding voltage of 2000V AC/min. The insulator is made of green PA66 with UL94-V0 flammability rating, and contacts are brass with tin plating. Operating temperature range is -40°C to 105°C.
This component is RoHS compliant and lead free, with UL standard certification E315414. Packaging is in box format. The header is intended for general electronics equipment and should not be used in safety-critical applications without written approval from Würth Elektronik.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.03 | $5.03 |
| 10+ | $4.57 | $4.57 |
| 50+ | $4.29 | $4.29 |
| 100+ | $3.93 | $3.93 |
| 450+ | $3.19 | $3.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The header has 10 positions arranged in 2 levels with 5 positions per level.
The pitch is 3.81mm.
The current rating is 10A (UL).
The working voltage is 300VAC (UL).
Through hole with solder termination.
Yes, it is RoHS compliant and lead free.
-40°C to 105°C.
