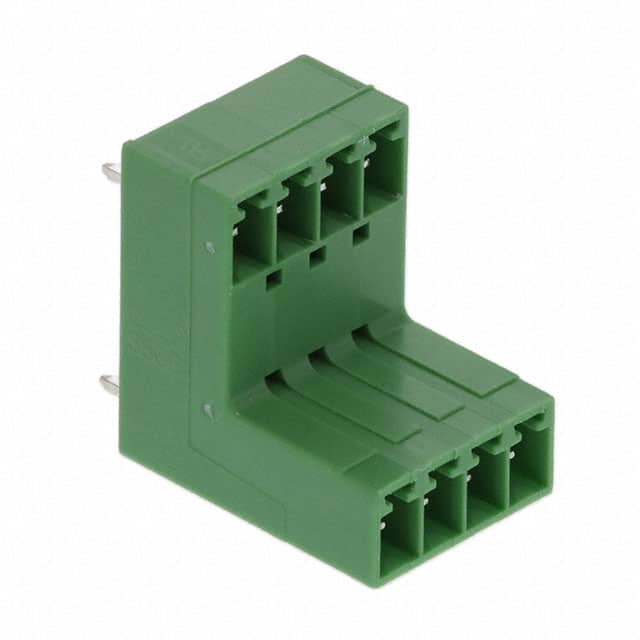

691356300008B Würth Elektronik WR-TBL Series 356B 3.81mm double level vertical male PCB header with 8 positions (4 per level). Rated 10A at 300V AC. Through-hole solder termination.
Mfr Part #:

691356300008B

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Würth Elektronik WR-TBL Series 356B 3.81mm double level vertical male PCB header with 8 positions (4 per level). Rated 10A at 300V AC. Through-hole solder termination.
✓ Total Stock: 12 pcs
$ Price Range: $2.62 - $4.14

691356300008B Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
12 pcs
On Request
12 pcs On Request 12 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691356300008B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Material
Contact Mating Finish
Contact Plating
Contact Resistance
Current
Current Rating
Header Orientation
Insulation Resistance
Insulator Flammability Rating
Insulator Material
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Positions Per Level
Termination Style
Type
Voltage
Voltage Rating
Withstanding Voltage
View Similar Products (0)

691356300008B Description

Short technical summary and product information.

The Würth Elektronik 691356300008B is a WR-TBL Series 356B 3.81mm pitch double level vertical male PCB header. It features 8 positions arranged in 2 levels of 4 positions each, with a shrouded (4 side) design for secure mating. The header is rated for 10A current and 300V AC working voltage, with a withstanding voltage of 2000V AC. Contact resistance is 20 mΩ max and insulation resistance exceeds 2000 MΩ.



Constructed with a green PA66 insulator (UL94 V-0 flammability rating) and brass contacts with tin plating, this header is designed for through-hole soldering. It is RoHS compliant and cULus approved (E315414). The operating temperature range is -40°C to +105°C.



This component is suitable for pluggable PCB connections in industrial control, automation, and power distribution applications. Packaging is in box quantities.

691356300008B Quick Information

Product Type: Terminal Block Header
Series: 356B
Canonical Name: WR-TBL Series 356B 3.81mm Double Level Vertical Male PCB Header
Subcategory: Pluggable Connector

691356300008B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

691356300008B Estimated Pricing

Qty Low High
1+ $4.14 $4.14
10+ $3.76 $3.76
50+ $3.53 $3.53
100+ $3.23 $3.23
400+ $2.62 $2.62

Estimated market price range - modelled values for guidance only, not live distributor offers.

691356300008B Features

  • 8 positions in 2 levels of 4.
  • 3.81mm pitch vertical male header.
  • Rated 10A at 300V AC.
  • Through-hole solder termination.
  • Green PA66 insulator UL94 V-0.

691356300008B Applications

  • Pluggable PCB connections in control systems.
  • Industrial automation and power distribution.
  • Terminal block interface for signal wiring.

691356300008B FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 691356300008B have?

8 positions arranged in 2 levels of 4 positions per level.

What is the pitch of this header?

3.81mm (0.150 inches).

What is the current and voltage rating?

10A current rating and 300V AC working voltage.

What is the mounting type?

Through-hole solder termination.

What is the operating temperature range?

-40°C to +105°C.

Is this component RoHS compliant?

Yes, RoHS compliant.

What certifications does it have?

cULus approval E315414.
