| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11 pcs
|
11 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Material | |
| Contact Mating Finish | |
| Contact Plating | |
| Contact Resistance | |
| Current | |
| Current Rating | |
| Header Orientation | |
| Insulation Resistance | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Voltage Rating | |
| Withstanding Voltage |

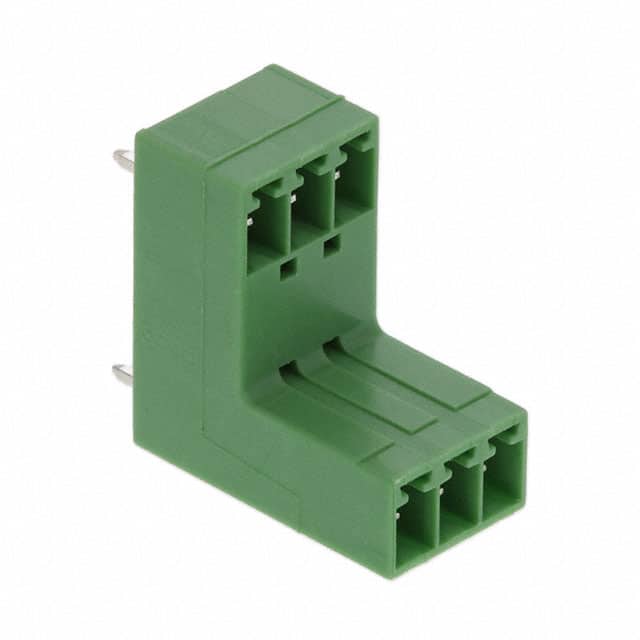

The Würth Elektronik 691356300006B is a WR-TBL Series 356B double level vertical male PCB header. It features 6 positions arranged in 2 levels with 3 positions per level, on a 3.81mm pitch. The header is shrouded on 4 sides for secure mating and protection.
Electrical ratings include 10A current and 300V voltage, with a withstanding voltage of 2000V AC/min. Insulation resistance exceeds 2000 MOhm and contact resistance is 20 mOhm maximum. The operating temperature range is -40°C to 105°C.
The insulator is made of PA66 with UL94-V0 flammability rating. Contacts are brass with tin plating. The component is designed for through hole vertical mounting with solder termination and is compatible with JEDEC lead free wave soldering. Packaging is in box.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.38 | $3.38 |
| 10+ | $3.07 | $3.07 |
| 50+ | $2.89 | $2.89 |
| 100+ | $2.64 | $2.64 |
| 390+ | $2.14 | $2.14 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions in 2 levels (3 per level).
3.81mm (0.150 inches).
10A.
300V.
Through hole, vertical orientation.
-40°C to 105°C.
Yes, RoHS compliant and lead free.
