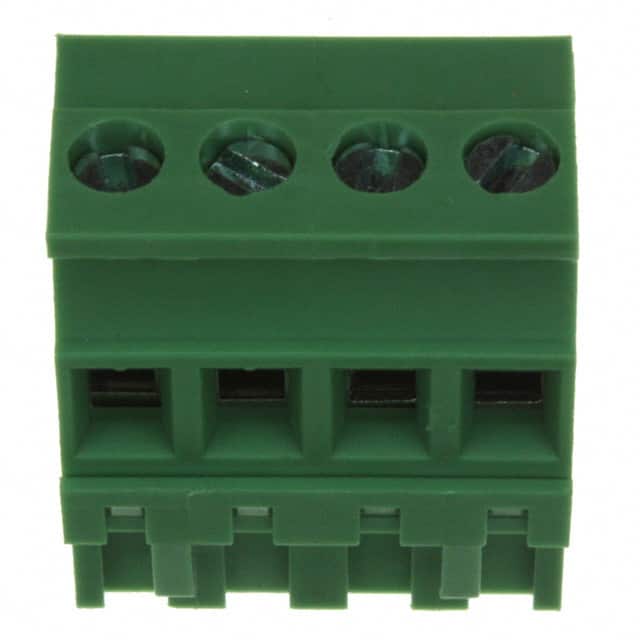

691352510004 WR-TBL Series 352 4-position 5.08mm pitch terminal block plug with screw termination and retention latches. Rated 15A (cULus) / 17A (VDE) at 300VAC.
Mfr Part #:

691352510004

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
WR-TBL Series 352 4-position 5.08mm pitch terminal block plug with screw termination and retention latches. Rated 15A (cULus) / 17A (VDE) at 300VAC.
✓ Total Stock: 175 pcs
$ Price Range: $1.97 - $2.23

691352510004 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
175 pcs
On Request
175 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

691352510004 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Color
Contact Resistance
Current
Features
Industrial Grade
Lead Spacing
Lead Style
Medical Grade
Military Grade
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Plug Wire Entry
Positions Per Level
Screw Size
Termination Style
Torque
Type
Voltage
Voltage Rating
Wire Gauge
Wire Gauge or Range
View Similar Products (0)

691352510004 Description

Short technical summary and product information.

The Würth Elektronik 691352510004 is a WR-TBL Series 352 4-position terminal block plug with a 5.08mm pitch. It features a free hanging (in-line) mounting type with 90° wire entry and screw termination using a leaf spring and wire guard mechanism. Retention latches on the wire side provide secure mating.



Electrical ratings include 15A (cULus) / 17A (VDE) current rating and 300VAC working voltage. Withstanding voltage is 1.6KV (cULus) / 2.5KV (VDE) with a maximum contact resistance of 20 mOhm. The plug accepts 24-12 AWG solid or stranded wire with a strip length of 6-7 mm.



The green insulator is made of PA 66 with UL94-V0 flammability rating. The metal housing is brass (CuZn), terminal screw is steel with zinc plating, and the wire guard is tin-plated phosphor bronze. Operating temperature range is -40°C to 105°C.

691352510004 Quick Information

Product Type: Terminal Block Plug
Series: 352
Canonical Name: WR-TBL Series 352 5.08mm 4-Position Horizontal Cable Entry Plug with Retention Latches
Subcategory: Headers, Plugs and Sockets

691352510004 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant
Lead Free: Lead Free

691352510004 Estimated Pricing

Qty Low High
1+ $2.23 $2.23
10+ $2.00 $2.00
50+ $1.97 $1.97

Estimated market price range - modelled values for guidance only, not live distributor offers.

691352510004 Features

  • 4-position 5.08mm pitch terminal block plug.
  • Screw termination with leaf spring and wire guard.
  • Rated 15A (cULus) / 17A (VDE) at 300VAC.
  • Accepts 24-12 AWG solid or stranded wire.
  • Retention latches on wire side for secure mating.

691352510004 Applications

  • Used in industrial control and automation systems.
  • Suitable for power distribution and signal wiring.
  • Ideal for panel and enclosure wiring applications.
  • Common in building automation and HVAC equipment.

691352510004 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 691352510004 have?

It has 4 positions arranged in 1 level.

What is the pitch of this terminal block plug?

The pitch is 5.08mm (0.200").

What is the current rating of the 691352510004?

The current rating is 15A per cULus and 17A per VDE.

What is the voltage rating?

The working voltage is 300VAC.

What is the mounting type?

Free hanging (in-line) with 90° wire entry.

What wire sizes does this plug accept?

It accepts 24-12 AWG solid or stranded wire (0.205-3.31 mm²).

What is the operating temperature range?

-40°C to 105°C.
